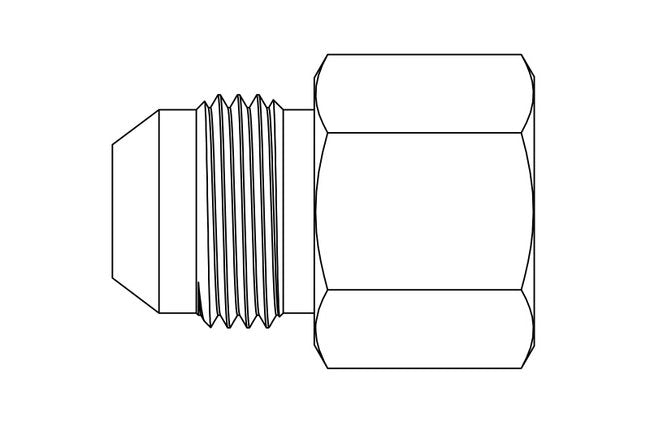

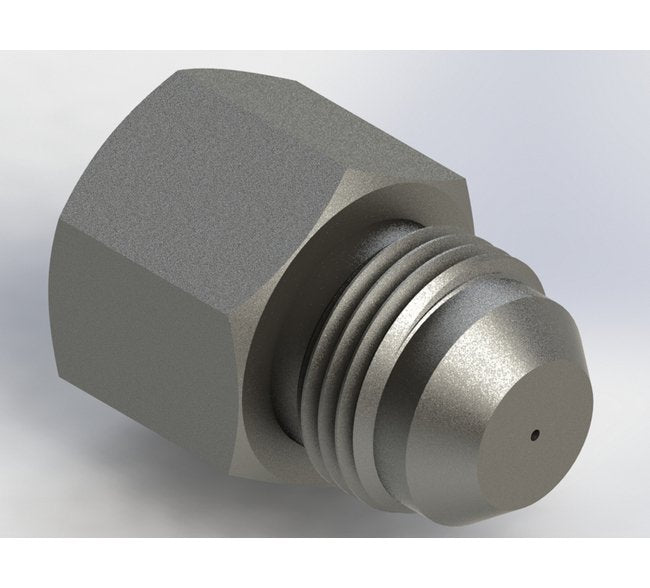

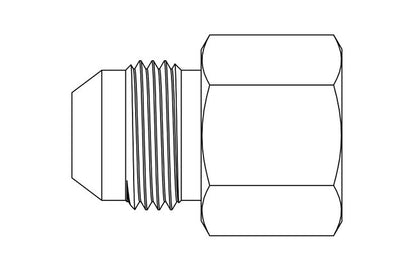

The SAE 37 Degree Flare Adapter, Type CFJ8, is a precision metal orifice assembly designed to adapt to common fittings used in process instruments and hydraulic systems. Crafted from 303 SS, this adapter boasts a high-pressure capability of up to 4000 psig, ensuring reliable bi-directional flow with a precision orifice size and shape for predictable flow rates. With a CV of 0.210 and dimensions meticulously engineered for accuracy, this adapter excels in hydraulic circuits with SAE flare connections. Experience exceptional performance, repeatability, and economical operation with this versatile and durable solution.
Product Specifications
Advantages 0

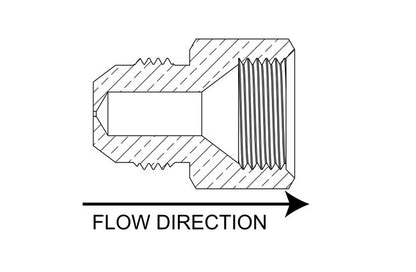

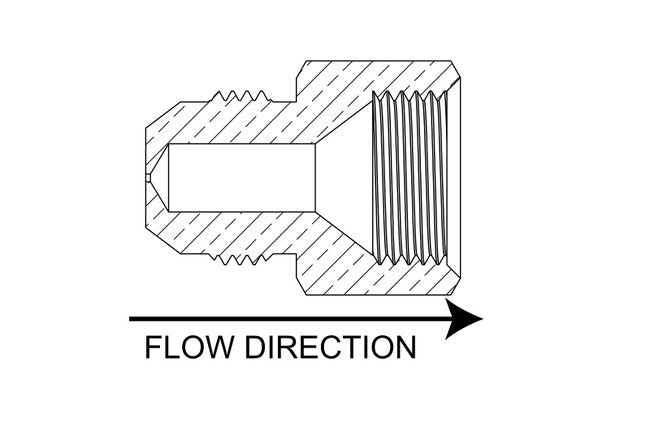

High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.0960 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 63.7 | 5 psig: 138 | 10 psig: 181 | 15 psig: 218 | 20 psig: 256 | 25 psig: 292 | 30 psig: 331 | 40 psig: 405 | 50 psig: 481 | 60 psig: 559 | 70 psig: 638 | 80 psig: 716 | 90 psig: 792 | 100 psig: 875
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 30.1 | 5 psig (34.5 kPag): 65 | 10 psig (69.0 kPag): 85.5 | 15 psig (103.4 kPag): 103 | 20 psig (137.9 kPag): 121 | 25 psig (172.4 kPag): 138 | 30 psig (206.9 kPag): 156 | 40 psig (275.8 kPag): 191 | 50 psig (344.8 kPag): 227 | 60 psig (413.7 kPag): 264 | 70 psig (482.7 kPag): 301 | 80 psig (551.6 kPag): 338 | 90 psig (620.6 kPag): 374 | 100 psig (689.5 kPag): 413
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 115 | 20 In. Hg.: 115 | 30 In. Hg.: 115
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 54.4 | 20 In. Hg. (508 Mm. Hg.): 54.4 | 30 In. Hg. (762 Mm. Hg.): 54.4
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 88.6 | 10 In. Hg.: 110
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 41.8 | 10 In. Hg. (254 Mm. Hg.): 52.1
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.210 | 2 psig: 0.297 | 3 psig: 0.364 | 4 psig: 0.420 | 5 psig: 0.470 | 6 psig: 0.514 | 7 psig: 0.556 | 8 psig: 0.594 | 9 psig: 0.630 | 10 psig: 0.664 | 15 psig: 0.813 | 20 psig: 0.939 | 30 psig: 1.150 | 40 psig: 1.328 | 50 psig: 1.485 | 60 psig: 1.627 | 70 psig: 1.757 | 80 psig: 1.878 | 90 psig: 1.992 | 100 psig: 2.100
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.795 | 2 psig (13.8 kPag): 1.124 | 3 psig (20.7 kPag): 1.377 | 4 psig (27.6 kPag): 1.59 | 5 psig (34.5 kPag): 1.778 | 6 psig (41.4 kPag): 1.947 | 7 psig (48.3 kPag): 2.103 | 8 psig (55.2 kPag): 2.248 | 9 psig (62.1 kPag): 2.385 | 10 psig (69 kPag): 2.514 | 15 psig (103.4 kPag): 3.079 | 20 psig (137.9 kPag): 3.555 | 30 psig (206.9 kPag): 4.354 | 40 psig (275.8 kPag): 5.028 | 50 psig (344.8 kPag): 5.621 | 60 psig (413.7 kPag): 6.158 | 70 psig (482.7 kPag): 6.651 | 80 psig (551.6 kPag): 7.110 | 90 psig (620.6 kPag): 7.541 | 100 psig (689.5 kPag): 7.949
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.210
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
96
Specifications Screened
None
