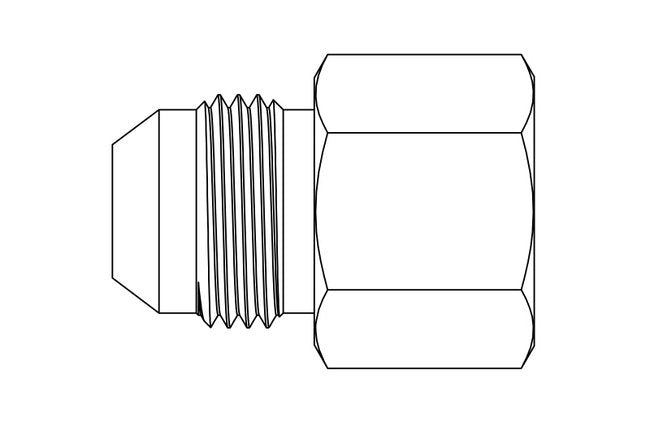

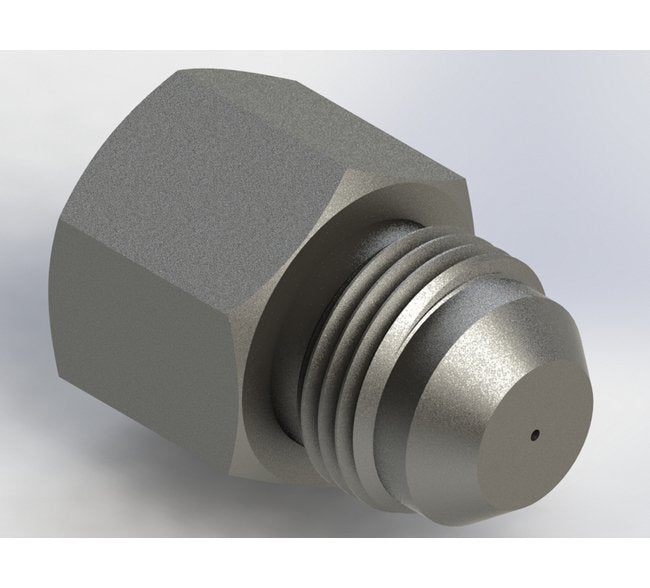

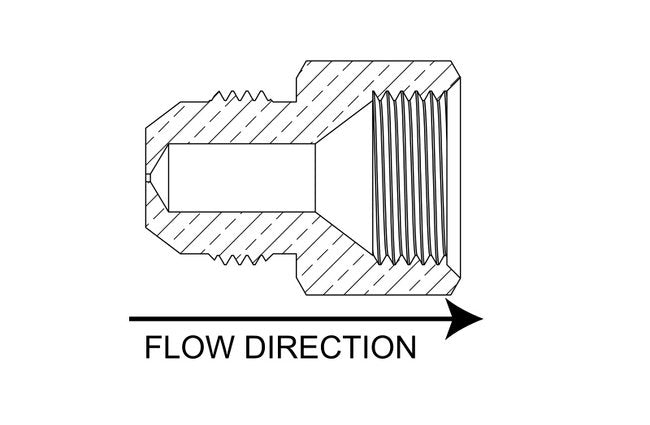

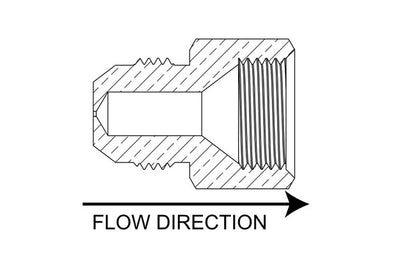

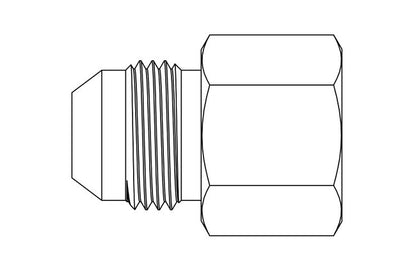

The SAE 37 Degree Flare Adapter Type CFJ8 is a precision metal orifice assembly designed for seamless adaptation to common fittings in process instruments and hydraulic systems. Made of high-quality 303 stainless steel, this adapter boasts an orifice diameter of 0.1000 in with an accuracy of ±0.0005 in. It features bi-directional flow, repeatable orifice size and shape, and a predictable flow rate, making it ideal for high-pressure applications. With a maximum operating pressure of 4000 psig, SAE 37 Degree Flare connections, and a CV of 0.230, this adapter ensures reliable performance and durability in various hydraulic circuits and applications.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.1000 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 69.8 | 5 psig: 150 | 10 psig: 196 | 15 psig: 235 | 20 psig: 275 | 25 psig: 316 | 30 psig: 356 | 40 psig: 439 | 50 psig: 523 | 60 psig: 606 | 70 psig: 693 | 80 psig: 778 | 90 psig: 860 | 100 psig: 951
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 32.9 | 5 psig (34.5 kPag): 70.8 | 10 psig (69.0 kPag): 92.3 | 15 psig (103.4 kPag): 111 | 20 psig (137.9 kPag): 130 | 25 psig (172.4 kPag): 149 | 30 psig (206.9 kPag): 168 | 40 psig (275.8 kPag): 207 | 50 psig (344.8 kPag): 247 | 60 psig (413.7 kPag): 286 | 70 psig (482.7 kPag): 327 | 80 psig (551.6 kPag): 367 | 90 psig (620.6 kPag): 406 | 100 psig (689.5 kPag): 449
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 125 | 20 In. Hg.: 125 | 30 In. Hg.: 125
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 59 | 20 In. Hg. (508 Mm. Hg.): 59 | 30 In. Hg. (762 Mm. Hg.): 59
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 96.1 | 10 In. Hg.: 120
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 45.3 | 10 In. Hg. (254 Mm. Hg.): 56.6
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.230 | 2 psig: 0.325 | 3 psig: 0.398 | 4 psig: 0.460 | 5 psig: 0.514 | 6 psig: 0.563 | 7 psig: 0.609 | 8 psig: 0.651 | 9 psig: 0.690 | 10 psig: 0.727 | 15 psig: 0.891 | 20 psig: 1.029 | 30 psig: 1.260 | 40 psig: 1.455 | 50 psig: 1.626 | 60 psig: 1.782 | 70 psig: 1.924 | 80 psig: 2.057 | 90 psig: 2.182 | 100 psig: 2.300
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.871 | 2 psig (13.8 kPag): 1.231 | 3 psig (20.7 kPag): 1.508 | 4 psig (27.6 kPag): 1.741 | 5 psig (34.5 kPag): 1.947 | 6 psig (41.4 kPag): 2.133 | 7 psig (48.3 kPag): 2.304 | 8 psig (55.2 kPag): 2.463 | 9 psig (62.1 kPag): 2.612 | 10 psig (69 kPag): 2.753 | 15 psig (103.4 kPag): 3.372 | 20 psig (137.9 kPag): 3.894 | 30 psig (206.9 kPag): 4.769 | 40 psig (275.8 kPag): 5.506 | 50 psig (344.8 kPag): 6.156 | 60 psig (413.7 kPag): 6.744 | 70 psig (482.7 kPag): 7.284 | 80 psig (551.6 kPag): 7.787 | 90 psig (620.6 kPag): 8.260 | 100 psig (689.5 kPag): 8.706
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.230
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
100
Specifications Screened
None
