SAE 37° Flare Adapter CFJ8, Orifice Size 0.023 in
SAE 37° Flare Adapter CFJ8, Orifice Size 0.023 in
SKU:PRE-617c59
Precision metal orifice adapter for hydraulic systems with 0.023 in orifice, high pressure capability, and repeatable flow rate.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SAE 37° Flare Adapter CFJ8, Orifice Size 0.023 in
$49.99
Quantity: 1
Claim Your Seller Account
SAE 37° Flare Adapter CFJ8, Orifice Size 0.023 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

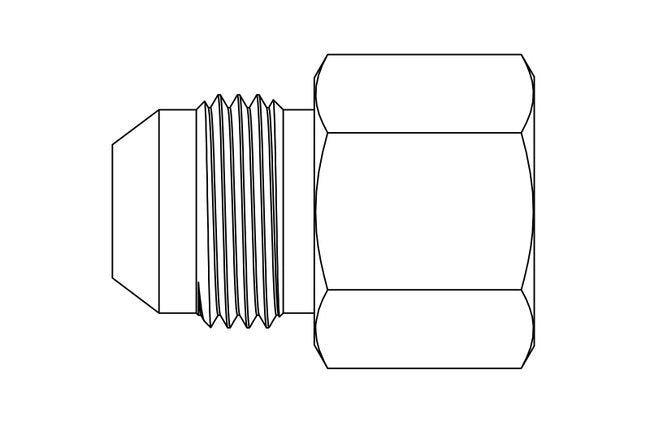

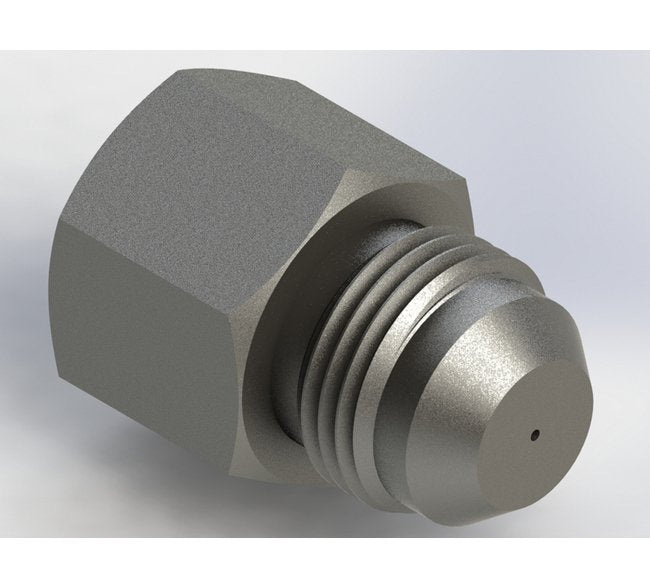

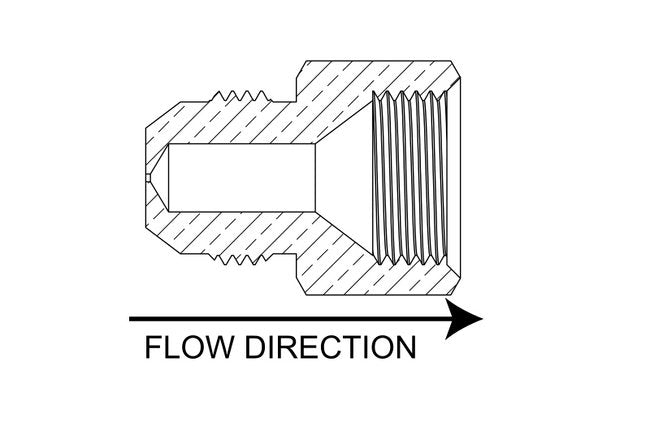

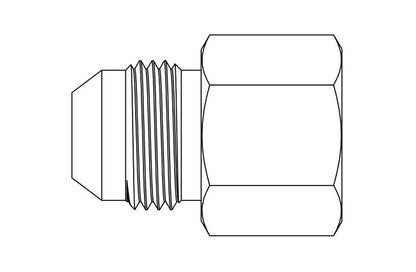

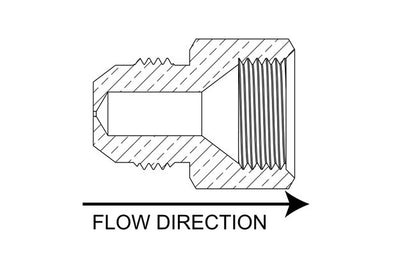

The SAE 37° Flare Adapter Type CFJ8 is a precision metal orifice assembly designed for seamless adaptation to common process instrument and hydraulic system fittings. Crafted from high-grade 303 SS, it boasts an accurate 0.023 in orifice diameter with a tolerance of ±0.0005 in. With a maximum operating pressure of 4000 psig and bi-directional flow capability, this adapter ensures a predictable flow rate, making it ideal for hydraulic circuits with SAE flare connections. Enjoy repeatable orifice size and shape, high pressure capability, and an economical design.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.023 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.99 | 5 psig: 6.87 | 10 psig: 10.1 | 15 psig: 12.6 | 20 psig: 14.7 | 25 psig: 16.8 | 30 psig: 19.0 | 40 psig: 23.3 | 50 psig: 27.5 | 60 psig: 31.8 | 70 psig: 36.0 | 80 psig: 40.3 | 90 psig: 44.5 | 100 psig: 48.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.41 | 5 psig (34.5 kPag): 3.24 | 10 psig (69.0 kPag): 4.75 | 15 psig (103.4 kPag): 5.93 | 20 psig (137.9 kPag): 6.95 | 25 psig (172.4 kPag): 7.95 | 30 psig (206.9 kPag): 8.98 | 40 psig (275.8 kPag): 11.0 | 50 psig (344.8 kPag): 13.0 | 60 psig (413.7 kPag): 15.0 | 70 psig (482.7 kPag): 17.0 | 80 psig (551.6 kPag): 19.0 | 90 psig (620.6 kPag): 21.0 | 100 psig (689.5 kPag): 23.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.04 | 20 In. Hg.: 6.04 | 30 In. Hg.: 6.04
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.85 | 20 In. Hg. (508 Mm. Hg.): 2.85 | 30 In. Hg. (762 Mm. Hg.): 2.85
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.45 | 10 In. Hg.: 5.68
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.10 | 10 In. Hg. (254 Mm. Hg.): 2.68
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.012 | 2 psig: 0.017 | 3 psig: 0.021 | 4 psig: 0.024 | 5 psig: 0.027 | 6 psig: 0.029 | 7 psig: 0.032 | 8 psig: 0.034 | 9 psig: 0.036 | 10 psig: 0.038 | 15 psig: 0.046 | 20 psig: 0.054 | 30 psig: 0.066 | 40 psig: 0.076 | 50 psig: 0.085 | 60 psig: 0.093 | 70 psig: 0.100 | 80 psig: 0.107 | 90 psig: 0.114 | 100 psig: 0.120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.045 | 2 psig (13.8 kPag): 0.064 | 3 psig (20.7 kPag): 0.079 | 4 psig (27.6 kPag): 0.091 | 5 psig (34.5 kPag): 0.102 | 6 psig (41.4 kPag): 0.102 | 7 psig (48.3 kPag): 0.120 | 8 psig (55.2 kPag): 0.128 | 9 psig (62.1 kPag): 0.136 | 10 psig (69 kPag): 0.144 | 15 psig (103.4 kPag): 0.176 | 20 psig (137.9 kPag): 0.203 | 30 psig (206.9 kPag): 0.249 | 40 psig (275.8 kPag): 0.287 | 50 psig (344.8 kPag): 0.321 | 60 psig (413.7 kPag): 0.352 | 70 psig (482.7 kPag): 0.380 | 80 psig (551.6 kPag): 0.406 | 90 psig (620.6 kPag): 0.431 | 100 psig (689.5 kPag): 0.454
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.012
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
23
Specifications Screened
None
