SAE 37° Flare Adapter, CFJ8 - Precision Metal Orifice
SAE 37° Flare Adapter, CFJ8 - Precision Metal Orifice
SKU:PRE-4b198b
Precision metal orifice adapter with 0.063" diameter, 4000 psig max pressure, bi-directional flow, and SAE 37° connections for hydraulic systems.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
SAE 37° Flare Adapter, CFJ8 - Precision Metal Orifice
$42.99
Quantity: 1
Claim Your Seller Account
SAE 37° Flare Adapter, CFJ8 - Precision Metal Orifice
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

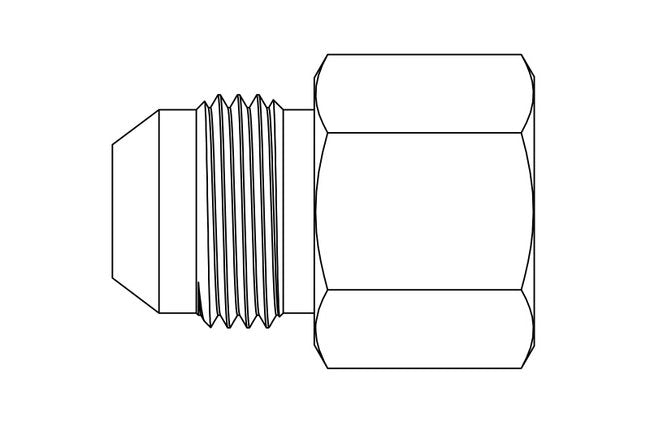

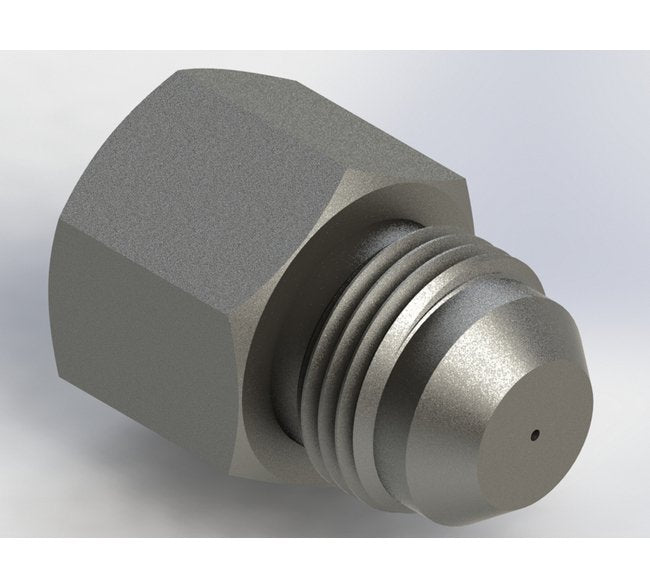

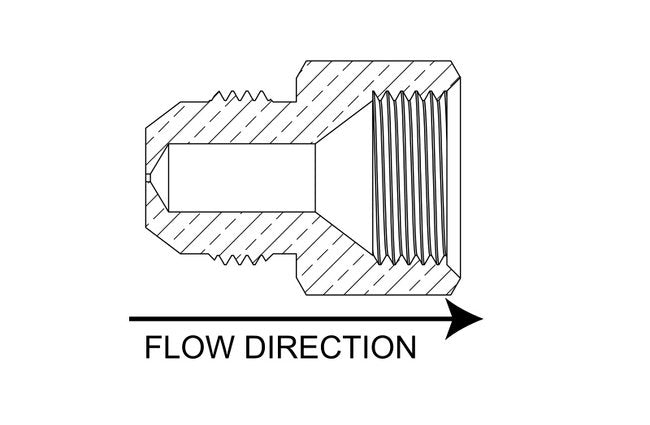

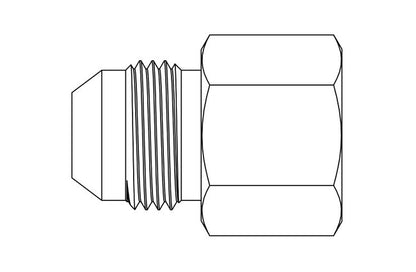

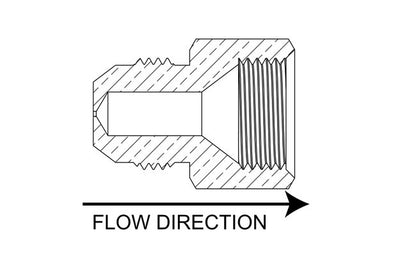

The SAE 37° Flare Adapter, Type CFJ8, is a precision metal orifice assembly designed for seamless integration with process instruments and hydraulic systems. This adapter boasts an orifice diameter of 0.063 inches with an accuracy of ±0.0005 inches, ensuring reliable performance. Made from high-quality 303 SS material, it can withstand a maximum operating pressure of 4000 psig. With bi-directional flow capability, economical operation, and precise orifice sizing, this adapter guarantees a predictable flow rate in high-pressure environments. It is compatible with SAE 37° flare connections, making it ideal for hydraulic circuits.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.063 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 25.9 | 5 psig: 55.3 | 10 psig: 74.6 | 15 psig: 90.3 | 20 psig: 106 | 25 psig: 122 | 30 psig: 138 | 40 psig: 170 | 50 psig: 202 | 60 psig: 233 | 70 psig: 267 | 80 psig: 298 | 90 psig: 331 | 100 psig: 362
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 12.2 | 5 psig (34.5 kPag): 26.1 | 10 psig (69.0 kPag): 35.2 | 15 psig (103.4 kPag): 42.6 | 20 psig (137.9 kPag): 50.1 | 25 psig (172.4 kPag): 57.7 | 30 psig (206.9 kPag): 65.2 | 40 psig (275.8 kPag): 80.3 | 50 psig (344.8 kPag): 95.4 | 60 psig (413.7 kPag): 110 | 70 psig (482.7 kPag): 126 | 80 psig (551.6 kPag): 141 | 90 psig (620.6 kPag): 156 | 100 psig (689.5 kPag): 171
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 46.8 | 20 In. Hg.: 46.8 | 30 In. Hg.: 46.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 22.1 | 20 In. Hg. (508 Mm. Hg.): 22.1 | 30 In. Hg. (762 Mm. Hg.): 22.1
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 36.2 | 10 In. Hg.: 44.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 17.1 | 10 In. Hg. (254 Mm. Hg.): 21.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.088 | 2 psig: 0.124 | 3 psig: 0.152 | 4 psig: 0.176 | 5 psig: 0.197 | 6 psig: 0.216 | 7 psig: 0.233 | 8 psig: 0.249 | 9 psig: 0.264 | 10 psig: 0.278 | 15 psig: 0.341 | 20 psig: 0.394 | 30 psig: 0.482 | 40 psig: 0.557 | 50 psig: 0.622 | 60 psig: 0.682 | 70 psig: 0.736 | 80 psig: 0.787 | 90 psig: 0.835 | 100 psig: 0.880
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.333 | 2 psig (13.8 kPag): 0.471 | 3 psig (20.7 kPag): 0.577 | 4 psig (27.6 kPag): 0.666 | 5 psig (34.5 kPag): 0.745 | 6 psig (41.4 kPag): 0.816 | 7 psig (48.3 kPag): 0.881 | 8 psig (55.2 kPag): 0.942 | 9 psig (62.1 kPag): 0.999 | 10 psig (69 kPag): 1.053 | 15 psig (103.4 kPag): 1.290 | 20 psig (137.9 kPag): 1.490 | 30 psig (206.9 kPag): 1.825 | 40 psig (275.8 kPag): 2.107 | 50 psig (344.8 kPag): 2.355 | 60 psig (413.7 kPag): 2.580 | 70 psig (482.7 kPag): 2.787 | 80 psig (551.6 kPag): 2.979 | 90 psig (620.6 kPag): 3.16 | 100 psig (689.5 kPag): 3.331
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.088
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
63
Specifications Screened
None
