SAE 7/16-20 x 7/16-20 8,000 psi Piston-Type Stainless Steel Snubber

Name: SAE 7/16-20 x 7/16-20 8,000 psi Piston-Type Stainless Steel Snubber
Brand: Del Val Controls, Inc
SKU: NOS-aac933
Price: 79.99 USD
Availability: OutOfStock

SKU:NOS-aac933

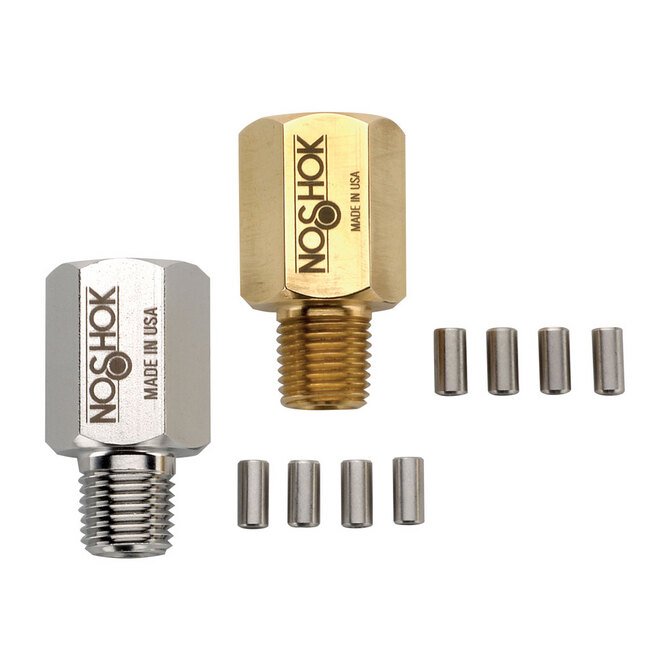

High-pressure 8,000 psi piston-type stainless steel snubber with 5 pistons for versatile applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SAE 7/16-20 x 7/16-20 Piston-Type Snubber is a premium solution designed for high-pressure applications, featuring a durable 316 stainless steel construction with an 8,000 psi pressure rating. It comes with five different sized pistons for versatile snubbing needs. This snubber resists clogging, self-cleans, and ensures precise snubbing for optimal performance across various applications.

Product Specifications

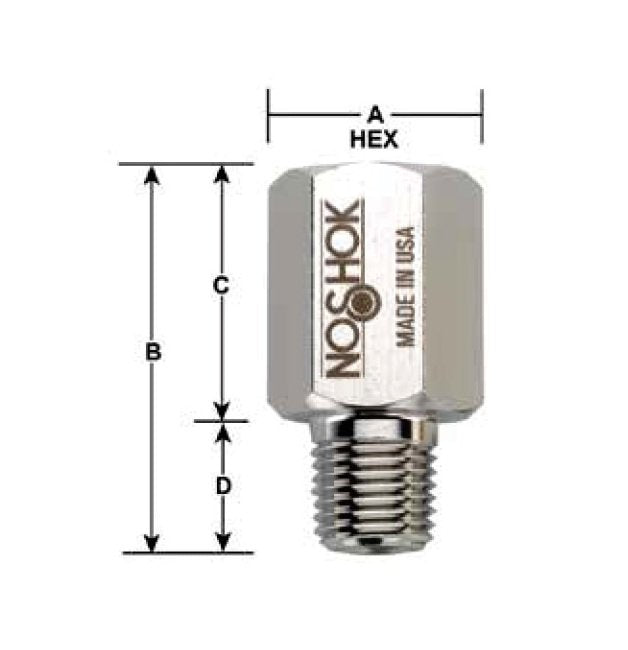

Dimensions Dimension A

0.812 in | 20.6 mm

Dimensions Dimension B

1.60 in | 40.6 mm

Dimensions Dimension C

1.24 in | 31.5 mm

Dimensions Dimension D

0.36 in | 9.1 mm

Prop 65 Warnings Prop 65 Warnings

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Specifications Connection Size

7/16 in.-20

Specifications Connection Type

Society of Automotive Engineering (SAE) J1926-3

Specifications Material

316 Stainless Steel

Specifications Piston

A, B, C, D, E

Specifications Pressure Rating

8,000 psi

Specifications Style

Piston-Type

Specifications Type

Snubber

Specifications Weight

0.2 lb
