SAE .8620 Steel Non-Magnetic Single Angle Sine Plate
SAE .8620 Steel Non-Magnetic Single Angle Sine Plate
SKU:NON-76b658
Precision SAE .8620 Steel Sine Plate for accurate non-magnetic workholding in industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SAE .8620 Steel Non-Magnetic Single Angle Sine Plate
$349.99
Quantity: 1
Claim Your Seller Account
SAE .8620 Steel Non-Magnetic Single Angle Sine Plate
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

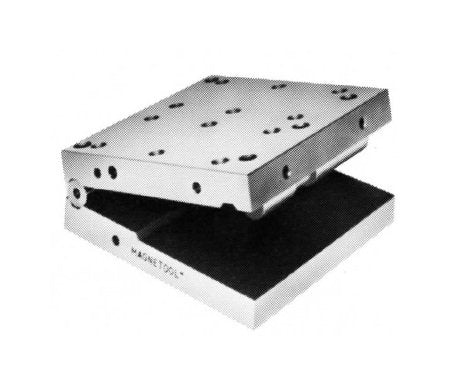

The SAE .8620 Steel Non-Magnetic Single Angle Sine Plate is an essential tool for precision workholding applications where magnetic options are not viable. With a surface area of 6 x 18 sq. in., this plate offers a Sine of 5.000, 27 holes with a 1/4-20 tapped hole pattern, a height of 3 in, and a weight of 76 lb. Crafted from hardened SAE .8620 steel to 58-60 Rockwell C, this plate ensures durability and accuracy in machining operations. Compliant with SAE standards, it provides reliable performance for a range of industrial and institutional settings.
Product Specifications
Specifications Height
3 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Number Of Holes
27
Specifications Plate And Roll Material
SAE .8620 Steel
Specifications Sine
5.000
Specifications Standards
SAE
Specifications Surface Area
6 x 18 in²
Specifications Tapped Hole Pattern
1/4-20
Specifications Weight
76 lb
