The SAE-certified DRV-10 Flow Control Valve with Check is designed for precise and repeatable control of hydraulic fluids at pressures up to 5000 PSI. Featuring a micrometer style adjustment knob with a color-coded flow indicator, this valve ensures accurate and easy flow control. With SAEJ1926 ports, carbon steel housing, and zinc plating, it meets stringent industry standards for durability and performance. The valve's unique safety spindle design and provision for panel mounting make it a versatile and reliable choice for industrial applications.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 67 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.61 in | 41 mm
Dimensions Dimension F
2.56 in | 65 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

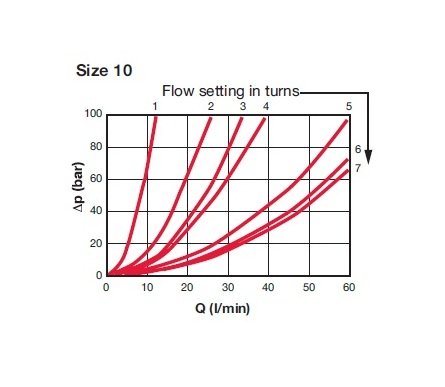

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
9/16-18 UNF (SAE-6)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-10-01.X/12
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
9/16-18 UNF (SAE-6)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.45 kg | 0.99 lb
