SAE DRV-12 Flow Control Valve with Check, 5000 PSI
SAE DRV-12 Flow Control Valve with Check, 5000 PSI
SKU:ACC-85f60d
Achieve precise hydraulic flow control with the SAE DRV-12 Valve, rated up to 5000 PSI. Durable, reliable, and ISO compliant for versatile applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SAE DRV-12 Flow Control Valve with Check, 5000 PSI
$129.99
Quantity: 1
Claim Your Seller Account
SAE DRV-12 Flow Control Valve with Check, 5000 PSI
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAE DRV-12 Flow Control Valve with Check is designed for precise hydraulic flow control at pressures up to 5000 PSI. Featuring SAEJ1926 Ports with ISO 725 Threads, this valve allows safe and repeatable adjustment with a micrometer style knob. Its color-coded flow indicator ensures accurate flow reference. With a durable carbon steel housing, zinc plated finish, and compliance with ISO standards, this valve guarantees reliability and performance in a wide range of industrial applications.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.73 in | 44 mm
Dimensions Dimension F
2.87 in | 73 mm
Dimensions Dimension J
Pg 16 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

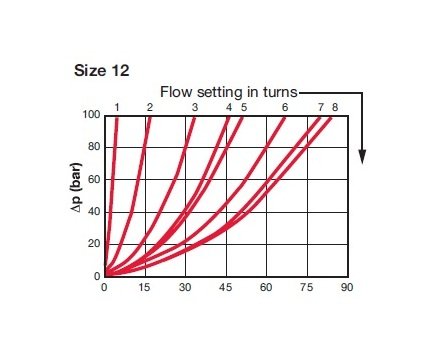

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/4-16 UNF (SAE-8)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-12-01.X/12-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/4-16 UNF (SAE-8)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.8 kg | 1.76 lb
