SAE DRV-16 Flow Control Valve with Check

SAE DRV-16 Flow Control Valve with Check

ACC-fba2d2

Achieve precise hydraulic fluid control with the SAE DRV-16 Flow Control Valve, designed for safety and reliability at up to 5000 PSI.

$189.99
$189.99
Sale

Initiate Order

SAE DRV-16 Flow Control Valve with Check

SAE DRV-16 Flow Control Valve with Check

$189.99

Quantity: 1

Claim Your Seller Account

SAE DRV-16 Flow Control Valve with Check

SAE DRV-16 Flow Control Valve with Check

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SAE DRV-16 Flow Control Valve with Check is a precision-engineered solution for hydraulic fluid control at pressures up to 5000 PSI. Featuring SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing, this valve ensures safe and repeatable flow adjustments. Its micrometer-style adjustment knob, color-coded flow indicator, and sturdy carbon steel construction make it ideal for institutional applications requiring precise hydraulic system regulation. With industry-standard certifications like ISO compliance, this valve guarantees quality performance in line with leading procurement standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 106 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
2.24 in | 57 mm
Dimensions Dimension F
3.46 in | 88 mm
Dimensions Dimension J
Pg 16 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

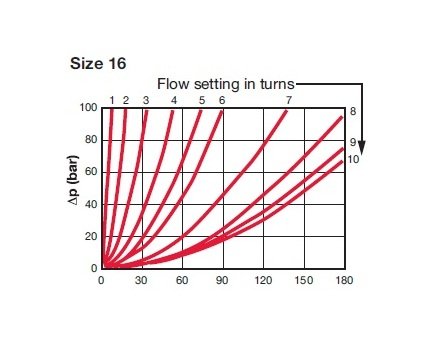

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 1/16-12 UN (SAE-12)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-16-01.X/12
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/16-12 UN (SAE-12)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
1.3 kg | 2.87 lb
