The SAE DV-10 Flow Control Valve is a premium in-line needle valve designed for precise flow control in industrial applications. Featuring SAE O-Ring, NPT, or BSPP threaded connections, it ensures secure sealing and efficient performance. The color-coded spindle allows for accurate flow adjustments, while the unique safety spindle design enhances operational safety. With a durable carbon steel construction, fluoroelastomer seals, and a flow rate of 80 gpm, this valve meets strict industry standards for reliability and performance.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 74 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.14 in | 29 mm
Dimensions Dimension F
2.28 in | 58 mm
Dimensions Dimension J
Pg 11 Thread
Dimensions Thread Size
9/16-18 UNF
Note 0

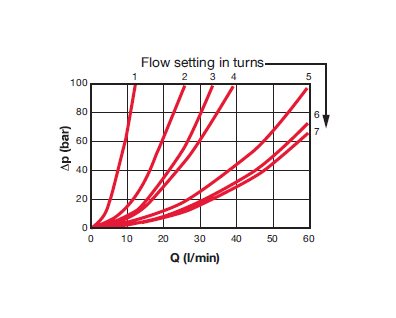

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-10-01.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV06Part Number: 00705300
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-6
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.4 kg | 0.88 lb
