SAE Flow Control Valve DRV-10 with Check Valve

SAE Flow Control Valve DRV-10 with Check Valve

ACC-9417da

Achieve precise hydraulic control with the SAE DRV-10 Flow Control Valve featuring color-coded adjustment and SAE port compatibility.

$129.99
$129.99
Sale

Initiate Order

SAE Flow Control Valve DRV-10 with Check Valve

SAE Flow Control Valve DRV-10 with Check Valve

$129.99

Quantity: 1

Claim Your Seller Account

SAE Flow Control Valve DRV-10 with Check Valve

SAE Flow Control Valve DRV-10 with Check Valve

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SAE Flow Control Valve DRV-10 with Check Valve enables precise hydraulic fluid control at up to 5000 PSI with micrometer-style adjustment and color-coded flow indication. This carbon steel valve with SAE ports and O-ring sealing ensures safe and repeatable inline flow management. With features like panel mounting, zinc plating, and ISO certification, this valve provides reliable performance in various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 67 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.61 in | 41 mm
Dimensions Dimension F
2.56 in | 65 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

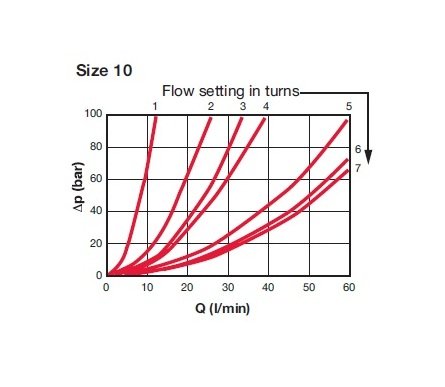

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications 0
Panel Mounting Kit
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
9/16-18 UNF (SAE-6)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-10-01.X/12-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
9/16-18 UNF (SAE-6)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.45 kg | 0.99 lb
