SAE Flow Control Valve DRV-12 with Check Valve
SAE Flow Control Valve DRV-12 with Check Valve
SKU:ACC-340ec3
Achieve precise hydraulic fluid control up to 5000 PSI with the SAE Flow Control Valve DRV-12 with color-coded indicators and micrometer adjustment.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SAE Flow Control Valve DRV-12 with Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
SAE Flow Control Valve DRV-12 with Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAE Flow Control Valve DRV-12 with Check Valve is designed for precise hydraulic fluid control up to 5000 PSI. Featuring color-coded flow indicators and micrometer-style adjustment knobs, this valve ensures safe and repeatable flow adjustments. With SAEJ1926 ports, ISO 725 threads, and O-ring sealing, it meets industry standards for performance and durability. The valve operator knob allows easy control, while the zinc-plated finish enhances corrosion resistance. Ideal for both consumer and institutional buyers requiring reliable flow control in their operations.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.73 in | 44 mm
Dimensions Dimension F
2.87 in | 73 mm
Dimensions Dimension J
Pg 16 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

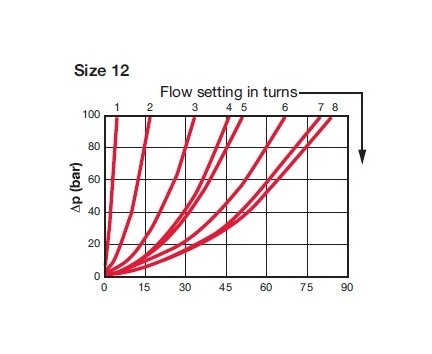

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/4-16 UNF (SAE-8)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-12-01.X/12
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/4-16 UNF (SAE-8)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.8 kg | 1.76 lb
