SAE Flow Control Valve DRV-20 with Check Valve

SAE Flow Control Valve DRV-20 with Check Valve

ACC-e5df81

Precisely control hydraulic fluids with the SAE DRV-20 Flow Valve, safe and easy adjustments up to 5000 PSI.

$319.00
$319.00
Sale

Initiate Order

SAE Flow Control Valve DRV-20 with Check Valve

SAE Flow Control Valve DRV-20 with Check Valve

$319.00

Quantity: 1

Claim Your Seller Account

SAE Flow Control Valve DRV-20 with Check Valve

SAE Flow Control Valve DRV-20 with Check Valve

$319.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SAE Flow Control Valve DRV-20 with Check Valve offers precise and repeatable control of hydraulic fluids up to 5000 PSI. Featuring color-coded flow indicators and a micrometer adjustment knob, this valve ensures safe and easy flow adjustments. Constructed from carbon steel with SAE-J1926 ports and ISO 725 threads, it meets industry standards for quality and performance. With a temperature range of -4°F to 212°F, this valve is reliable in various operating conditions. Its unique safety spindle design and provision for panel mounting enhance safety and versatility.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.71 in | 145 mm
Dimensions Dimension B
5.04 in | 128 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
3.03 in | 77 mm
Dimensions Dimension F
5 in | 127 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

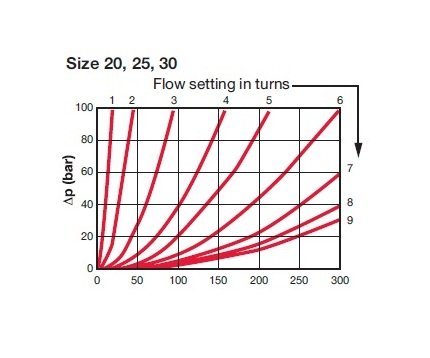

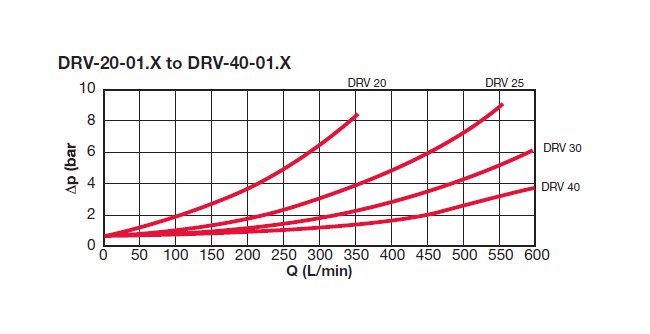

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 5/16-12 UN (SAE-16)
Specifications End Type
SAE
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-20-01.X/12
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
20
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 5/16-12 UN (SAE-16)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
2.4 kg | 5.29 lb
