SAE Flow Control Valve DRV-30 with Check Valve
SAE Flow Control Valve DRV-30 with Check Valve
SKU:ACC-df9c17
Achieve precise hydraulic fluid control with the SAE DRV-30 Flow Valve. Easily adjust flow up to 5000 PSI with color-coded indicators. ISO standard compliant.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SAE Flow Control Valve DRV-30 with Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
SAE Flow Control Valve DRV-30 with Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAE Flow Control Valve DRV-30 with Check Valve offers precise and repeatable control of hydraulic fluids up to 5000 PSI. With SAE port configuration and color-coded flow indicator, it ensures accurate flow adjustment. This carbon steel valve meets ISO standards, features a safety spindle design, and can be panel mounted for ease of use.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
6.1 in | 155 mm
Dimensions Dimension B
5.43 in | 138 mm
Dimensions Dimension C
1.38 in | 35 mm
Dimensions Dimension D
2.76 in | 70 mm
Dimensions Dimension E
4.25 in | 108 mm
Dimensions Dimension F
5.63 in | 143 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

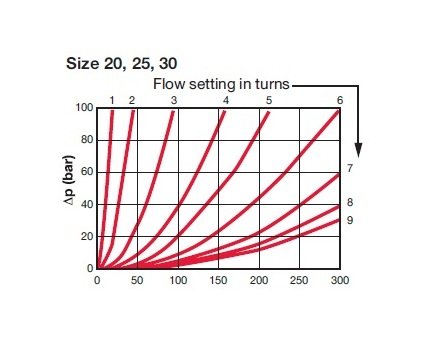

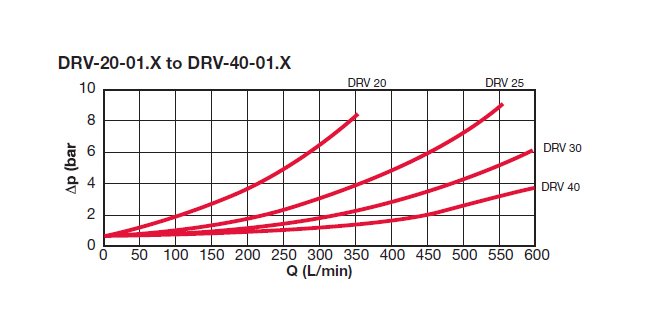

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 7/8-12 UN (SAE-24)
Specifications End Type
SAE
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-30-01.X/12
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
30
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 7/8-12 UN (SAE-24)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
4.60 kg | 7.72 lb
