SAE Flow Control Valve DRV-30 with Check Valve
SAE Flow Control Valve DRV-30 with Check Valve
SKU:ACC-8a010b
Achieve precise hydraulic fluid control with the SAE DRV-30 Flow Control Valve, meeting ISO standards for reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SAE Flow Control Valve DRV-30 with Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
SAE Flow Control Valve DRV-30 with Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAE Flow Control Valve DRV-30 with Check Valve is designed for precise and repeatable control of hydraulic fluids at up to 5000 PSI. Featuring color-coded flow indicators, micrometer-style adjustment knobs, and carbon steel construction, this inline valve ensures safe and easy flow management. It meets International Organization for Standardization (ISO) standards and offers various mounting options for versatility and ease of use.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
6.1 in | 155 mm
Dimensions Dimension B
5.43 in | 138 mm
Dimensions Dimension C
1.38 in | 35 mm
Dimensions Dimension D
2.76 in | 70 mm
Dimensions Dimension E
4.25 in | 108 mm
Dimensions Dimension F
5.63 in | 143 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

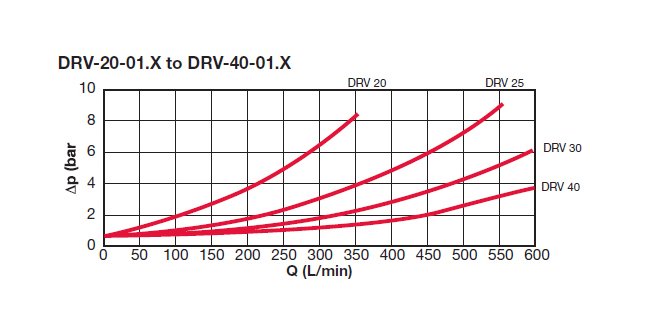

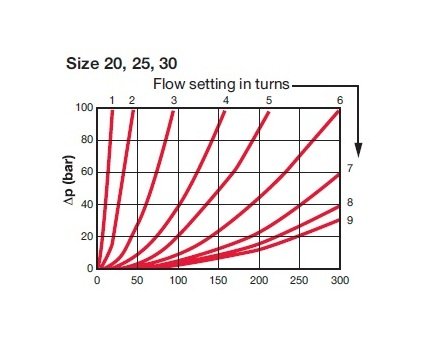

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 7/8-12 UN (SAE-24)
Specifications End Type
SAE
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-30-01.X/12-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
30
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 7/8-12 UN (SAE-24)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
4.60 kg | 7.72 lb
