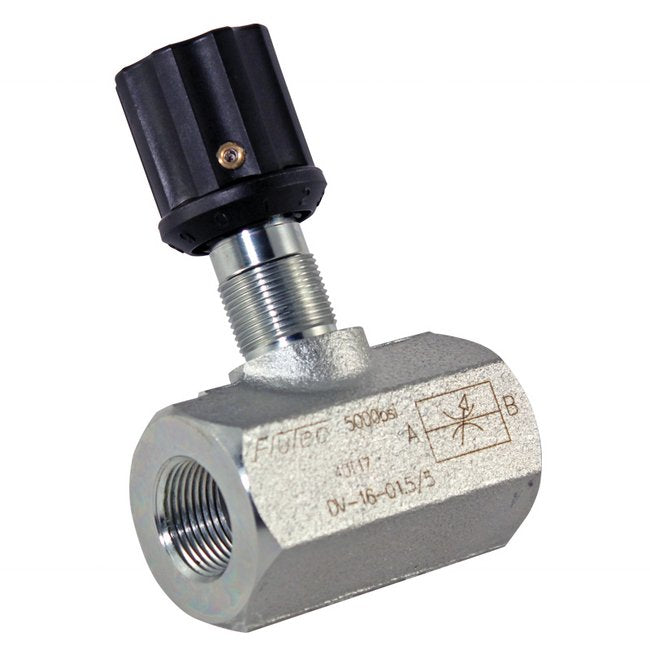

The SAE Flow Control Valve DV-08 is a precision-engineered needle valve designed for accurate flow control in industrial applications. Featuring SAE O-Ring, NPT or BSPP threaded connections, this valve offers reliable performance with its carbon steel construction and fluoroelastomer seals. With a flow capacity of 80 gpm and an operating pressure of 5000 psi, it ensures efficient fluid regulation. The color-coded spindle and unique safety spindle design enhance usability, while its compliance with ISO standards makes it a trusted choice for government and institutional buyers.
Product Specifications

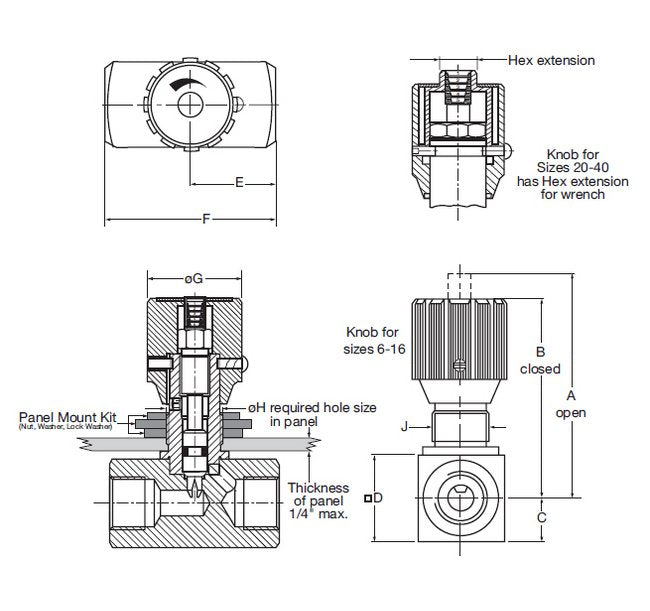

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.83 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
0.94 in | 24 mm
Dimensions Dimension F
1.89 in | 48 mm
Dimensions Dimension J
Pg 11 Thread
Dimensions Thread Size
7/16-20 UNF
Note 0

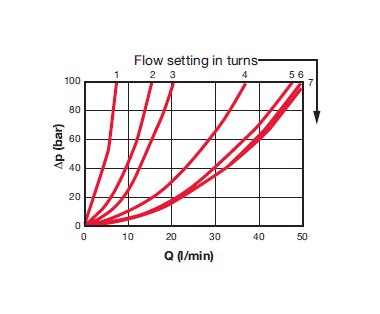

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-08-17.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV08Part Number: 00705310
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-4
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.25 kg | 0.55 lb
