SAE Flow Control Valve DV-16
SAE Flow Control Valve DV-16
SKU:ACC-b00c76
DV-16 SAE Flow Control Valve: Precision flow control with safety spindle design, panel mounting provision, and durable construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SAE Flow Control Valve DV-16
$129.99
Quantity: 1
Claim Your Seller Account
SAE Flow Control Valve DV-16
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-16 SAE Flow Control Valve is a precision-engineered solution designed for seamless flow control applications. With SAE O-Ring, NPT, or BSPP Threaded Connections and unique safety spindle design, this valve ensures reliable performance. It features a color-coded spindle for precise flow control, along with provision for panel mounting. Manufactured with high-quality materials like carbon steel with a zinc-plated finish, this valve meets rigorous industry standards for durability and functionality. Operating at pressures up to 5000 psi with a flow capacity of 80 gpm, it offers unmatched performance in industrial settings.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 105 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
1.53 in | 39 mm
Dimensions Dimension F
3.07 in | 78 mm
Dimensions Dimension J
Pg 16 Thread
Dimensions Thread Size
1-1/16-12 UN
Note 0

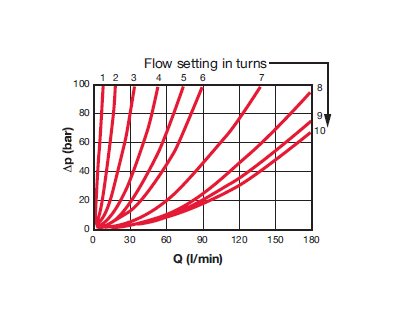

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-16-01.X/12-S
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV12Part Number: 00705302
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-12
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
1.2 kg | 2.6 lb
Supplementary Details 0
Panel Mounting Kit
