The DV-16 SAE Flow Control Valve is designed for precise flow control with SAE O-Ring, NPT or BSPP Threaded Connections. Featuring a unique safety spindle design, color coded spindle for accuracy, and options for manifold or panel mounting. This valve, crafted from carbon steel with Fluoroelastomer seals, operates at 5000 psi and can handle a temperature range of -4 to 212°F. With industry-standard certifications from ISO, this valve ensures reliable performance in various applications.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 105 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
1.53 in | 39 mm
Dimensions Dimension F
3.07 in | 78 mm
Dimensions Dimension J
Pg 16 Thread
Dimensions Thread Size
1-1/16-12 UN
Note 0

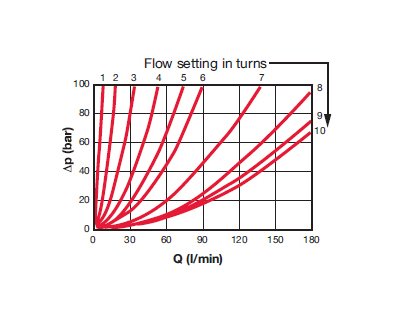

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-16-01.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV12Part Number: 00705302
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-12
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
1.2 kg | 2.6 lb
