The SAE Flow Control Valve DV-08 is designed for precision flow control with its color-coded spindle, provision for panel mounting, and unique safety spindle design. Featuring SAE O-Ring, NPT or BSPP Threaded Connections, Manifold Mounting, and Cartridge Type, this valve ensures reliable performance. With a nominal size of 08, a flow rate of 80 gpm, and an operating pressure of 5000 psi, it is constructed from durable Carbon Steel with Fluoroelastomer seals. Compliant with International Organization for Standardization (ISO) standards, this valve is ideal for institutional and government procurement needs.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.83 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
0.94 in | 24 mm
Dimensions Dimension F
1.89 in | 48 mm
Dimensions Dimension J
Pg 11 Thread
Dimensions Thread Size
7/16-20 UNF
Note 0

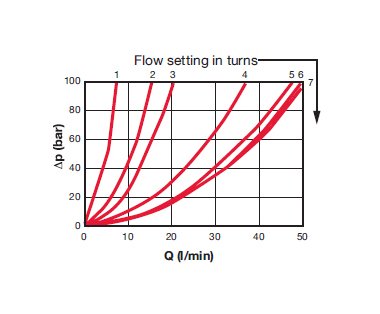

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-08-01.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV08Part Number: 00705310
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-4
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.25 kg | 0.55 lb
