SAE Flow Control Valve with Check DRV-08
SAE Flow Control Valve with Check DRV-08
SKU:ACC-6688cf
Achieve precise hydraulic fluid control with the SAE DRV-08 Valve, rated up to 5000 psi. Color-coded knob for easy adjustment.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SAE Flow Control Valve with Check DRV-08
$59.99
Quantity: 1
Claim Your Seller Account
SAE Flow Control Valve with Check DRV-08
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAE Flow Control Valve with Check DRV-08 is designed for precise and safe control of hydraulic fluids at pressures up to 5000 psi with threaded SAE connections. Featuring a micrometer style knob for flow adjustment and color-coded flow indicator, this valve ensures accurate and repeatable flow control in inline applications. With carbon steel construction, zinc plating, and industry-standard certifications, this valve provides reliable performance and durability for a wide range of applications.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.84 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
1.32 in | 33.5 mm
Dimensions Dimension F
2.17 in | 55 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

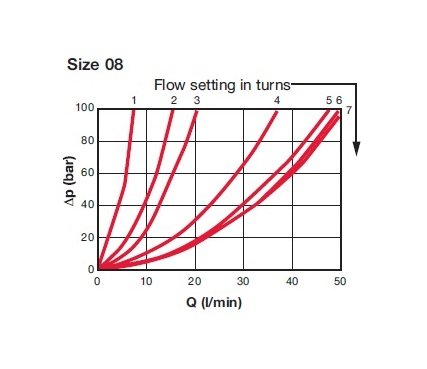

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
25 psi
Specifications Division
ACCESSORIES
Specifications End Size
7/16-20 UNF (SAE-4)
Specifications End Type
SAE
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-08-01.X/12- 25
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
7/16-20 UNF (SAE-4)
Specifications Second End Type
SAE
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.3 kg | 0.66 lb
