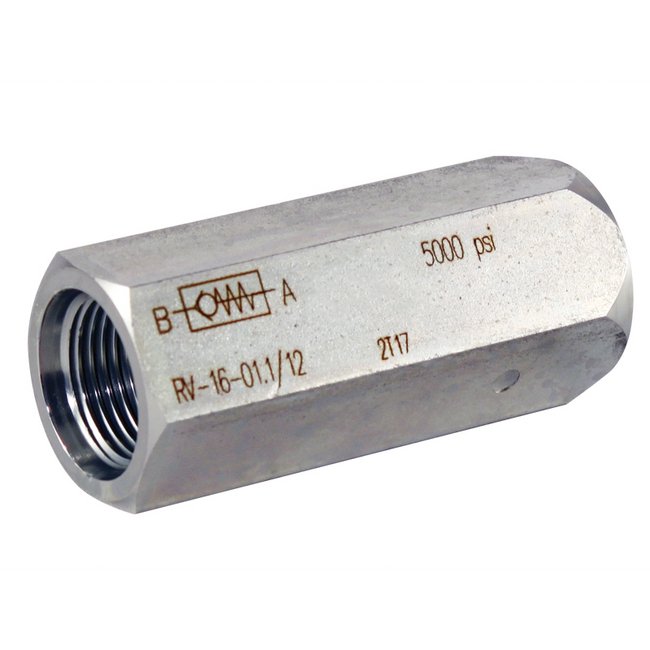

SAE In-Line Check Valve

SAE In-Line Check Valve

ACC-2f4aa7

High-performance SAE In-Line Check Valve for industrial flow control. Metal to metal seal design, carbon steel housing, and ISO standards compliance.

$89.99
$89.99
Sale

Initiate Order

SAE In-Line Check Valve

SAE In-Line Check Valve

$89.99

Quantity: 1

Claim Your Seller Account

SAE In-Line Check Valve

SAE In-Line Check Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SAE In-Line Check Valve is designed as a versatile flow control solution for industrial applications. With a housing material of carbon steel, metal to metal seal design for the poppet, and a maximum operating pressure of 345 bar | 5000 psi, this valve ensures reliable performance under demanding conditions. It features SAE - SAEJ1926 Ports with ISO 725, SAE Threads and O-Ring Sealing, making it suitable for a range of systems. Not recommended for high-cycle applications, this valve meets International Organization for Standardization (ISO) standards, ensuring quality and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

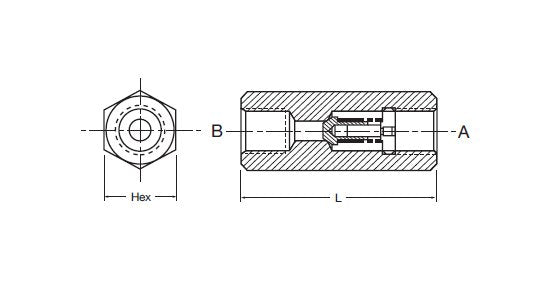

Dimensions Dimension L
5 in | 127 mm
Dimensions Hex Size
1 13/16 in | 46 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0

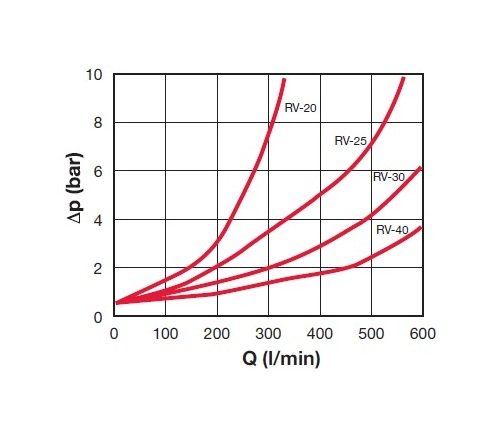

Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
10 bar | 145 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 5/16-12 UN
Specifications End Type
SAE
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-20-01.X/12-145
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
20
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725, SAE Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 5/16-12 UN
Specifications Second End Type
SAE
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
