SAE In-Line Check Valves, RV-40-01.X/12
SAE In-Line Check Valves, RV-40-01.X/12
SKU:ACC-fe6696
High-quality SAE In-Line Check Valve for precise flow control in hydraulic applications. Durable carbon steel construction with metal-to-metal seal design. Ideal for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SAE In-Line Check Valves, RV-40-01.X/12
$129.99
Quantity: 1
Claim Your Seller Account
SAE In-Line Check Valves, RV-40-01.X/12
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

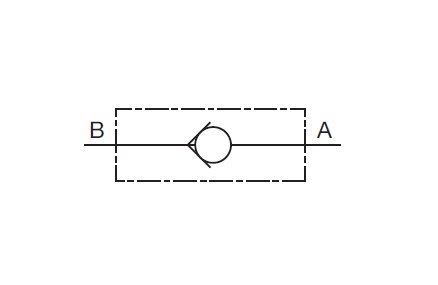

The SAE In-Line Check Valve RV-40-01.X/12 is a high-quality flow control valve designed for precise hydraulic applications. Constructed with durable carbon steel housing, it features SAEJ1926 Ports with ISO 725, SAE Threads, and O-Ring Sealing for reliable performance. With a cracking pressure of 0.5 bar and an operating pressure of up to 5000 psi, this valve ensures efficient flow control up to 150 gpm. Its metal-to-metal seal design with a hardened and ground steel poppet guarantees longevity and accuracy, making it an ideal choice for industrial settings.
Product Specifications
Dimensions Dimension L
6.5 in | 165 mm
Dimensions Hex Size
3 3/16 in | 80 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.5 bar | 7 psi
Specifications Division
ACCESSORIES
Specifications End Size
2 1/2-12 UN
Specifications End Type
SAE
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-40-01.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
40
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725, SAE Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
2 1/2-12 UN
Specifications Second End Type
SAE
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
