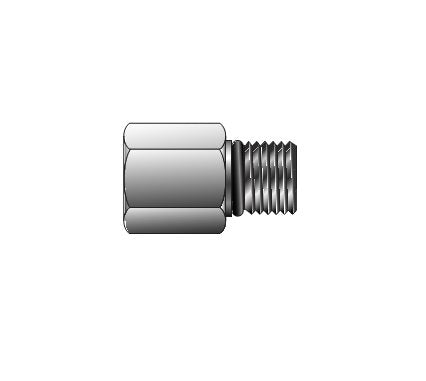

SAE Straight Thread to Female NPT Adapter for Fractional Tube
SAE Straight Thread to Female NPT Adapter for Fractional Tube
SKU:FIT-6148e3
Precision-engineered SAE to NPT Adapter for leak-free connections in instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SAE Straight Thread to Female NPT Adapter for Fractional Tube
$24.99
Quantity: 1
Claim Your Seller Account
SAE Straight Thread to Female NPT Adapter for Fractional Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAE Straight Thread to Female NPT Adapter is a precision-engineered fitting designed for leak-free connections in process and instrumentation applications. Manufactured to stringent quality standards, this adapter is constructed from durable materials, ensuring reliability and longevity. With features like rolled male threads for extra strength and compatibility with industry standards such as ANSI B31.1 and B31.3, this adapter is ideal for institutional buyers seeking top-quality fittings for their projects.
Product Specifications

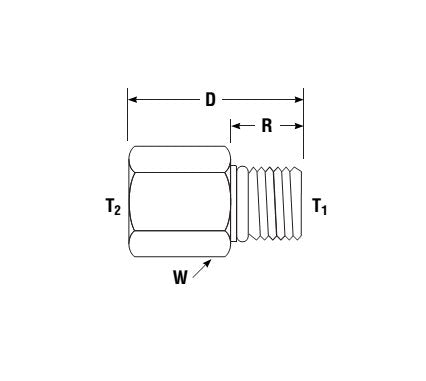

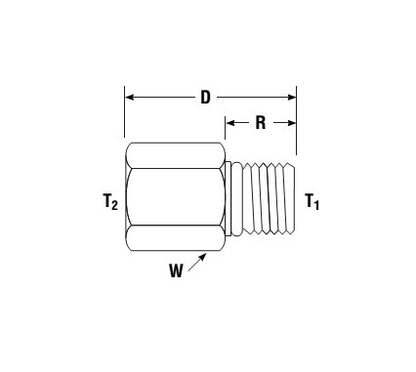

Dimensions Connection Type
FNPT x BSPP
Dimensions D
1.83 in
Dimensions E Minimum Opening
.66 in
Dimensions Interchanges With
12-SAE-7-12
Dimensions R
.59 in
Dimensions St O Ring Uniform Size
3-912
Dimensions T1 Straight Thread Size
1 1/16-12
Dimensions T2 Npt Female Pipe Size
3/4
Dimensions W Hex
1 1/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
