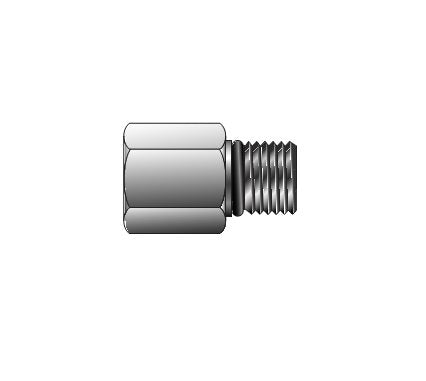

SAE Straight Thread to NPT Thread Adapter - Fractional Tube, Male to Female
SAE Straight Thread to NPT Thread Adapter - Fractional Tube, Male to Female
SKU:FIT-544a21
Precision-made Male SAE to Female NPT Thread Adapter for leak-free connections in industrial instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SAE Straight Thread to NPT Thread Adapter - Fractional Tube, Male to Female
$24.99
Quantity: 1
Claim Your Seller Account
SAE Straight Thread to NPT Thread Adapter - Fractional Tube, Male to Female
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your instrumentation systems with the Parker Male SAE Straight Thread to Female NPT Thread Adapter. Precision machined from high-quality materials and designed for leak-free connections, this fitting ensures reliability and performance. Compliant with ANSI standards, offering a diverse range of sizes and materials. Ideal for process control and instrumentation applications in industrial settings.

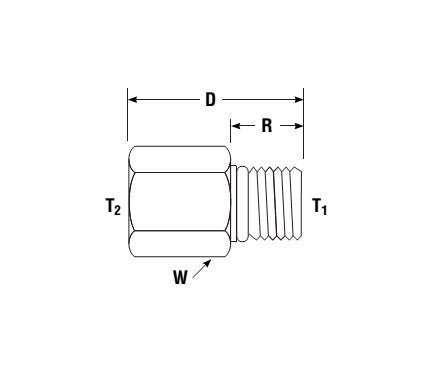

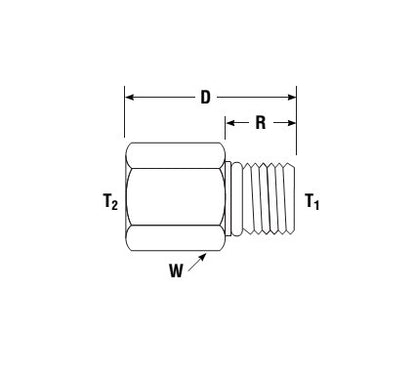

Product Specifications
Dimensions Connection Type
FNPT x BSPP
Dimensions D
1.88 in
Dimensions E Minimum Opening
.88 in
Dimensions Interchanges With
16-SAE-7-16
Dimensions R
.59 in
Dimensions St O Ring Uniform Size
3-916
Dimensions T1 Straight Thread Size
1 5/16-12
Dimensions T2 Npt Female Pipe Size
1
Dimensions W Hex
1 5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
