SAE Straight to NPT Thread Adapter for Fractional Tube
SAE Straight to NPT Thread Adapter for Fractional Tube
SKU:FIT-58cc06
Precision-made SAE Straight to NPT Thread Adapter for leak-free industrial applications. Durable materials & sizes 1/16" to 2" NPT. Exceeds ANSI standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SAE Straight to NPT Thread Adapter for Fractional Tube
$24.99
Quantity: 1
Claim Your Seller Account
SAE Straight to NPT Thread Adapter for Fractional Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

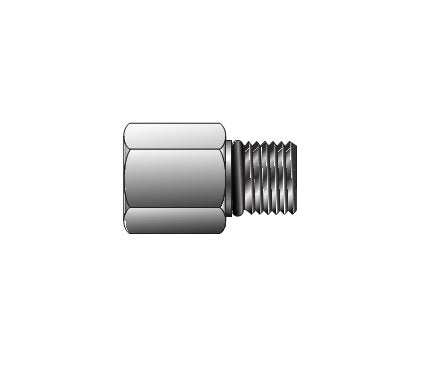

The SAE Straight Thread to NPT Thread Adapter for Fractional Tubes by Parker is a leak-free solution ideal for various industrial applications. Precision machined to ensure quality and reliability, these fittings meet strict standards for process control and instrumentation connections. Made from durable materials like 316 stainless steel, brass, and steel, these adapters come in sizes ranging from 1/16" to 2" NPT, providing versatility and compatibility. Packaged securely in sealed plastic boxes, these adapters exceed ANSI standards with rolled male threads for added strength.
Product Specifications

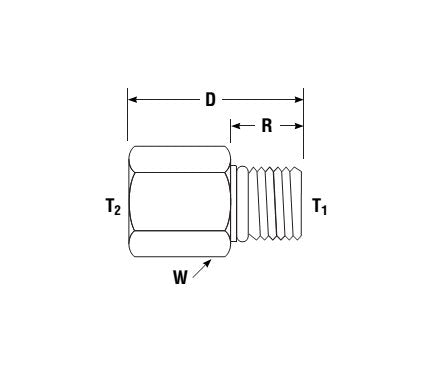

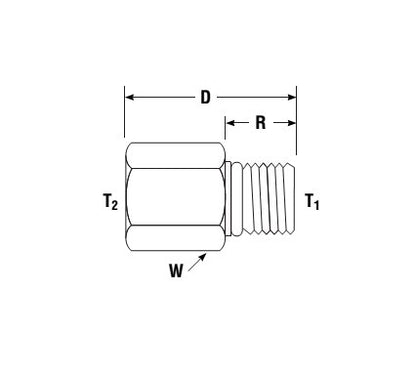

Dimensions Connection Type
FNPT x BSPP
Dimensions D
1.19 in
Dimensions E Minimum Opening
.20 in
Dimensions Interchanges With
4SAE-7-4
Dimensions R
.36 in
Dimensions St O Ring Uniform Size
3-904
Dimensions T1 Straight Thread Size
7/16-20
Dimensions T2 Npt Female Pipe Size
1/4
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
