Safelec 2 Aluminum/Stainless Steel Conductor Bar with Splice
Safelec 2 Aluminum/Stainless Steel Conductor Bar with Splice
SKU:CRA-9ad2d3
Safelec 2 Aluminum/Stainless Steel Conductor Bar for efficient power distribution in crane control systems. 200 A, UV-stable, PVC cover, UL-listed for safety.
Regular price
$349.00
Regular price
Sale price
$349.00
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Safelec 2 Aluminum/Stainless Steel Conductor Bar with Splice Installed is designed for reliable and efficient power distribution in crane control and electrification systems. With an amperage rating of 200 A and a cross-sectional area of 104 mm², this conductor bar ensures optimal current transmission. Its UV-stable black cover, PVC material, and self-extinguishing flame test results guarantee durability and safety. Meeting UL-listed maximum system voltage of 600 V, this bar is suitable for various industrial applications. The bar length of 4.5 meters, along with standardized support and expansion sections, simplifies installation and maintenance. Whether for consumer or institutional use, this conductor bar excels in performance and compliance with industry standards.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
200 A

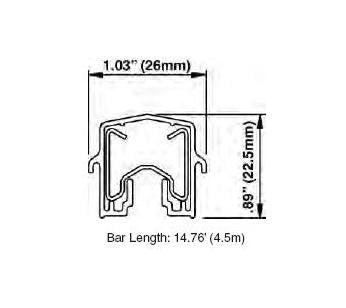

Specifications Bar Length
4.5 m
Specifications Cover Type
UV Stable (Black)
Specifications Cross Sectional Area
104 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000325 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
200 A
Specifications Resistance R For Dc At 20 C
0.000301 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
4.9 lb | 2.2 kg
