Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Name: Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice
Brand: Clutch Engineering
SKU: CRA-c4bd7c
Price: 249.99 USD
Availability: OutOfStock

SKU:CRA-c4bd7c

Enhance crane control with Safelec 2 Conductor Bars w/ Splice - 200A, PVC Cover, Aluminum/Steel Construction, compliant with industry standards.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your crane control with the Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice Installed. These bars feature a high amperage rating of 200A, with a sturdy construction of aluminum and stainless steel. The splice installation ensures easy setup and reliable electrical conductivity. With a maximum system voltage of 600V and various safety features like a self-extinguishing PVC cover, dielectric strength of 180 kv/cm, and compliance with industry standards, these conductor bars offer superior performance and durability for your electrification needs.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

160 ÂºF | 71.1 ÂºC

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

200 A

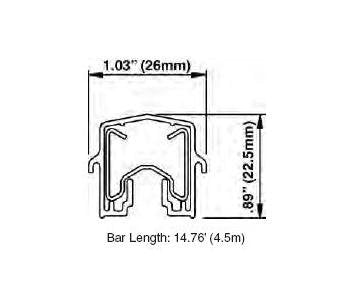

Specifications Bar Length

4.5 m

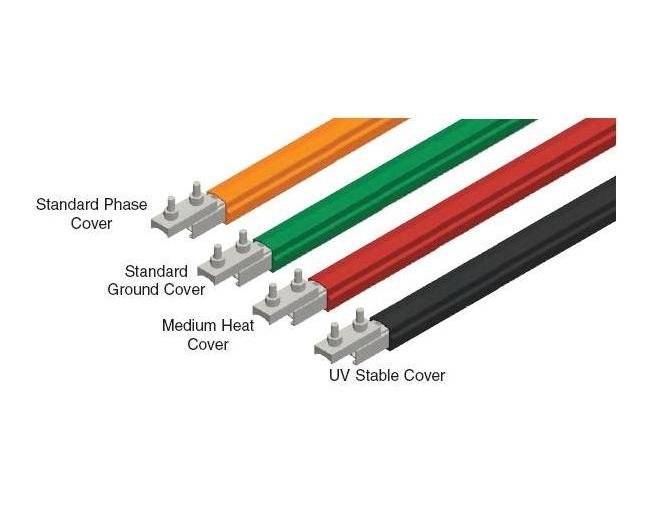

Specifications Cover Type

Standard Ground Cover (Green)

Specifications Cross Sectional Area

104 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000325 Î©/m

Specifications Material

Aluminum / Stainless Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

200 A

Specifications Resistance R For Dc At 20 C

0.000301 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

4.9 lb | 2.2 kg
