Safelec 2 Aluminum / Stainless Steel Conductor Bars with Splice
Safelec 2 Aluminum / Stainless Steel Conductor Bars with Splice
SKU:CRA-9ede27
Power your operations with Safelec 2 Aluminum / Stainless Steel Conductor Bars for efficient, safe, and reliable power distribution.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Safelec 2 Aluminum / Stainless Steel Conductor Bars with Splice
$899.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Aluminum / Stainless Steel Conductor Bars with Splice
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

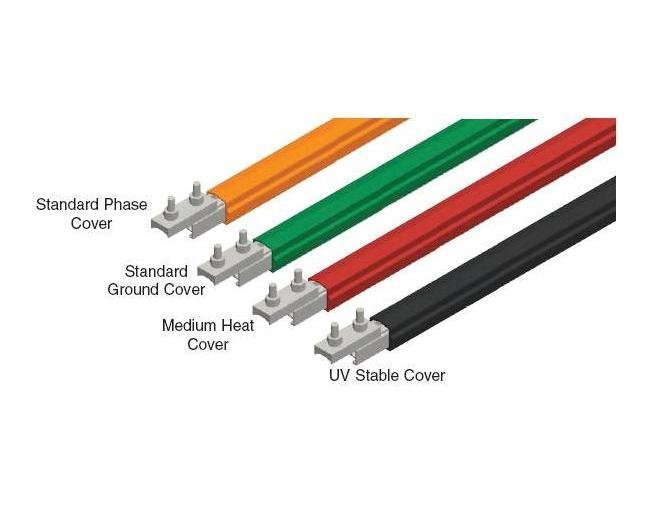

The Safelec 2 Aluminum / Stainless Steel Conductor Bars with Splice Installed are designed to deliver reliable power distribution for crane control and electrification systems. With an impressive Amperage Rating of 315 A and a Cross Sectional Area of 120 mm², these conductor bars ensure efficient power transmission. The durable construction of Aluminum and Stainless Steel provides strength and longevity, while the Standard Ground Cover in Green enhances safety. Meeting UL Listing standards with a Maximum System Voltage of 600 V, these bars exhibit low resistance and impedance, making them ideal for industrial applications where precision and reliability are paramount.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
315 A

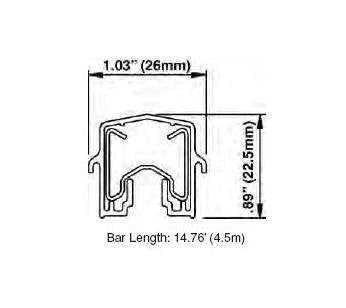

Specifications Bar Length
4.5 m
Specifications Cover Type
Standard Ground Cover (Green)
Specifications Cross Sectional Area
120 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000288 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
315 A
Specifications Resistance R For Dc At 20 C
0.000261 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.1 lb | 2.3 kg
