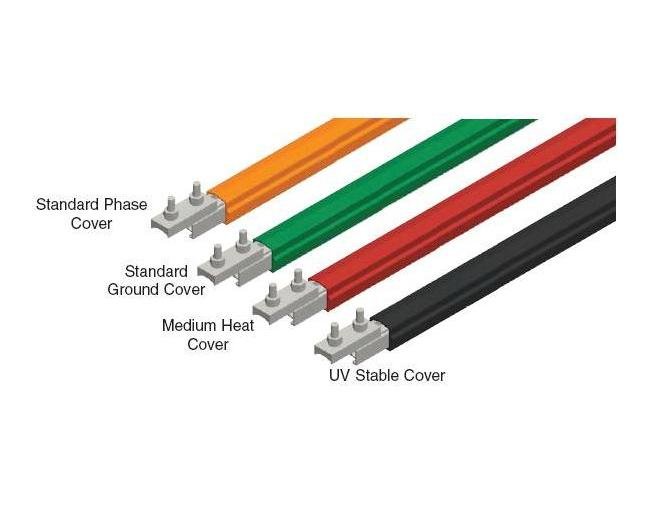

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

CRA-ffa69f

High-quality Safelec 2 Conductor Bars with 200A rating, medium heat cover, and strong polycarbonate material for safe and reliable electrification.

$149.99
$149.99
Sale

Initiate Order

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

$149.99

Quantity: 1

Claim Your Seller Account

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your crane control system with the Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice Installed. These bars are meticulously crafted to handle up to 200A with a rugged yet lightweight design. Featuring a medium heat cover, polycarbonate surface, and self-extinguishing flame test, these bars ensure safety and durability. With compliance to UL listing, NIST standards, and high dielectric strength, trust in the reliability of your electrification system with Safelec 2.

Product Specifications

Cover Specifications Cover Material
Polycarbonate
Cover Specifications Dielectric Strength
240 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
24%
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Surface Resistivity
>1014 Ω
Cover Specifications Vicat Softening Temperature
250 ºF | 121.1 ºC
Cover Specifications Volume Resistivity
>1016 Ω/cm
Specifications Amperage Rating
200 A

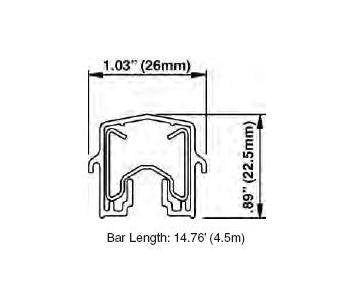

Specifications Bar Length
4.5 m
Specifications Cover Type
Medium Heat Cover (Red)
Specifications Cross Sectional Area
104 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000325 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
200 A
Specifications Resistance R For Dc At 20 C
0.000301 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
4.9 lb | 2.2 kg
