Experience superior electrical conductivity with the Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice. Designed for industrial applications, these bars have an impressive amperage rating of 400A and a cross-sectional area of 156 mm², ensuring efficient power distribution. The PVC cover with a dielectric strength of 180 kv/cm provides reliable insulation, meeting stringent safety standards. With a self-extinguishing flame test and compliance with industry-specific certifications, these conductor bars are ideal for crane control and electrification systems.

Product Specifications

Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
400 A
Specifications Bar Length
4.5 m

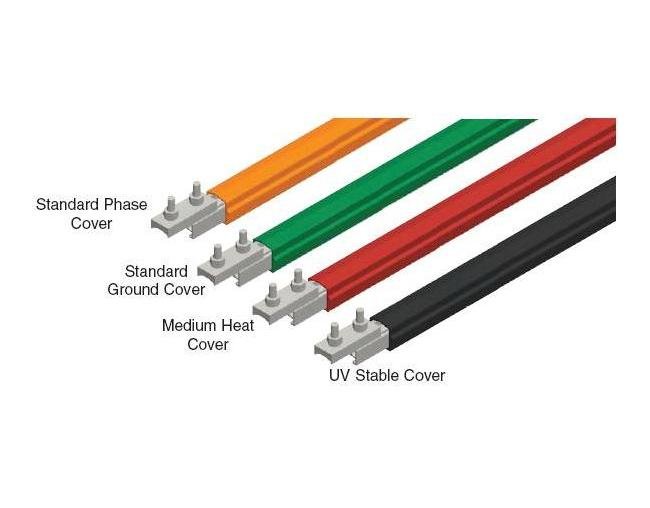

Specifications Cover Type
Standard Ground Cover (Green)
Specifications Cross Sectional Area
156 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000234 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
400 A
Specifications Resistance R For Dc At 20 C
0.000199 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.8 lb | 2.6 kg
