Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice
Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice
SKU:CRA-720113
Reliable Safelec 2 Conductor Bars with Splice for efficient crane power distribution. Amperage Rating: 200A, Max Voltage: 600V AC/DC.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice
$279.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice Installed are designed for reliable power distribution in crane control and electrification systems. With an amperage rating of 200 A and a maximum system voltage of 600 V AC or DC, these bars ensure efficient and safe power transmission. The aluminum/stainless steel construction provides durability and corrosion resistance, making them ideal for industrial applications. Additionally, the PVC cover with self-extinguishing properties and high dielectric strength meets stringent safety standards.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
200 A

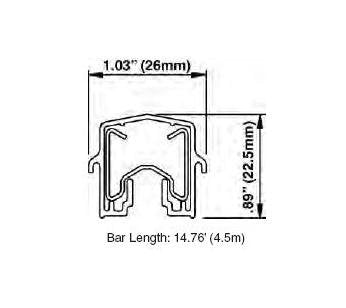

Specifications Bar Length
4.5 m
Specifications Cover Type

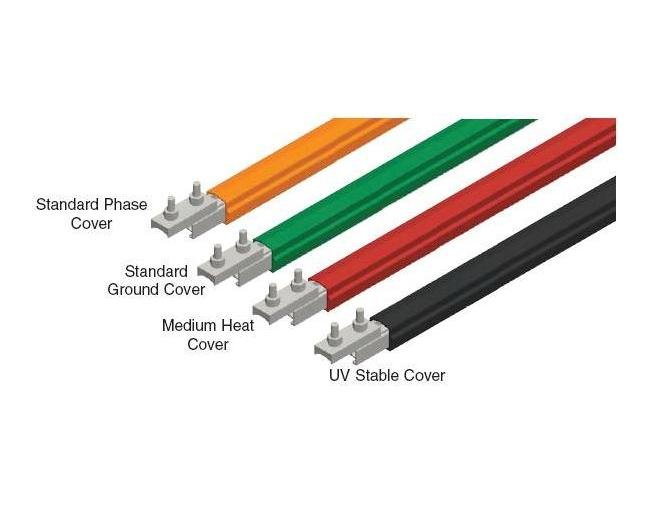

Standard Phase Cover (Orange)
Specifications Cross Sectional Area
104 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000325 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
200 A
Specifications Resistance R For Dc At 20 C
0.000301 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
4.9 lb | 2.2 kg
