SAFELEC 2 Aluminum / Stainless Steel Conductor Bars with Splice

Name: SAFELEC 2 Aluminum / Stainless Steel Conductor Bars with Splice
Brand: Clutch Engineering
SKU: CRA-59ff70
Price: 249.99 USD
Availability: OutOfStock

SKU:CRA-59ff70

Ensure safety & reliability with our SAFELEC 2 Aluminum / Stainless Steel Conductor Bars. Amperage Rating: 315A, Voltage: 600V, PVC cover. Compliant & durable.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance electrification safety with our SAFELEC 2 Aluminum / Stainless Steel Conductor Bars with Splice Installed. Offering an Amperage Rating of 315 A and a Maximum System Voltage of 600 V, these bars feature a sturdy Aluminum/Stainless Steel construction with a PVC cover, ensuring durability and reliability. With compliance to industry standards and a self-extinguishing Flame Test, these conductor bars with splice deliver exceptional performance in crane control applications.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

160 ÂºF | 71.1 ÂºC

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

315 A

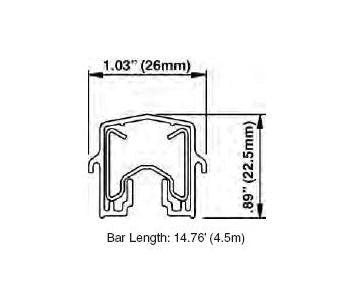

Specifications Bar Length

4.5 m

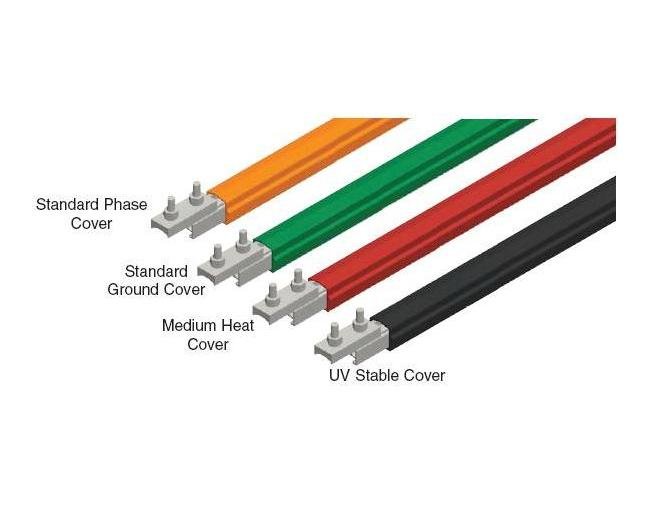

Specifications Cover Type

Standard Phase Cover (Orange)

Specifications Cross Sectional Area

120 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000288 Î©/m

Specifications Material

Aluminum / Stainless Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

315 A

Specifications Resistance R For Dc At 20 C

0.000261 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

5.1 lb | 2.3 kg
