Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

CRA-6c3ae5

Safelec 2 Conductor Bars with Splice: High performance, durable aluminum/stainless steel construction for safe power distribution.

$349.99
$349.99
Sale

Initiate Order

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

$349.99

Quantity: 1

Claim Your Seller Account

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your crane control system with our Safelec 2 Aluminum/Stainless Steel Conductor Bars. With a high amperage rating of 400 A and a maximum system voltage of 600 V, these bars ensure efficient power distribution. The medium heat red cover enhances safety while the durable construction of aluminum and stainless steel guarantees longevity. Designed to meet industry-leading standards, these conductor bars offer optimal performance, reliability, and compliance for both consumer and institutional buyers.

Product Specifications

Cover Specifications Cover Material
Polycarbonate
Cover Specifications Dielectric Strength
240 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
24%
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Surface Resistivity
>1014 Ω
Cover Specifications Vicat Softening Temperature
250 ºF | 121.1 ºC
Cover Specifications Volume Resistivity
>1016 Ω/cm
Specifications Amperage Rating
400 A

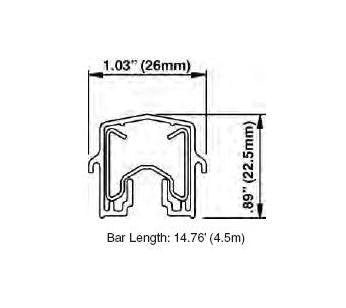

Specifications Bar Length
4.5 m

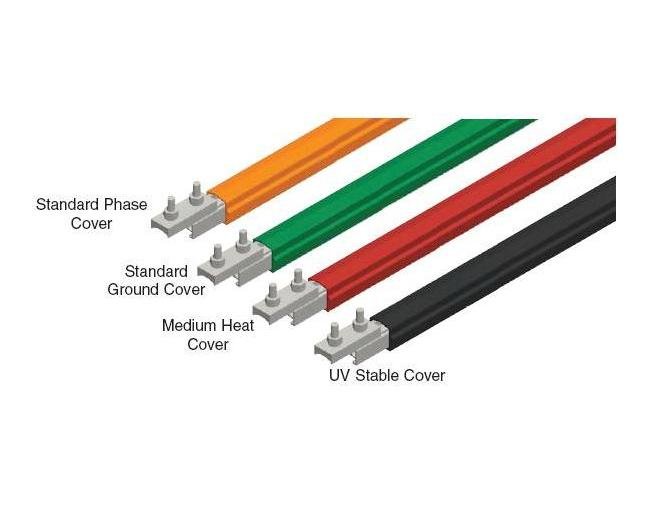

Specifications Cover Type
Medium Heat Cover (Red)
Specifications Cross Sectional Area
156 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000234 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
400 A
Specifications Resistance R For Dc At 20 C
0.000199 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.8 lb | 2.6 kg
