Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice

Name: Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice
Brand: Clutch Engineering
SKU: CRA-208f22
Price: 479.99 USD
Availability: OutOfStock

SKU:CRA-208f22

Premium Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice for efficient and reliable power distribution in industrial settings.

$479.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Safelec 2 Aluminum/Stainless Steel Conductor Bars with Splice Installed are designed for superior electrical conductivity in crane control and electrification systems. With an amperage rating of 400 A and a robust construction of aluminum and stainless steel, these bars ensure reliable power transmission. The UV stable black PVC cover provides durability in varying environments. Meeting UL listing standards with a maximum system voltage of 600 V, these bars offer low resistance and impedance for efficient power distribution. Ideal for industrial applications requiring a length of 4.5 m and supporting a pitch standard of 1500 mm, these conductor bars are a dependable choice for seamless electrical connectivity.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

160 ÂºF | 71.1 ÂºC

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

400 A

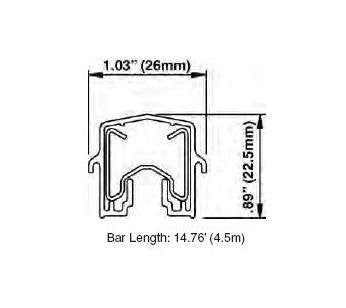

Specifications Bar Length

4.5 m

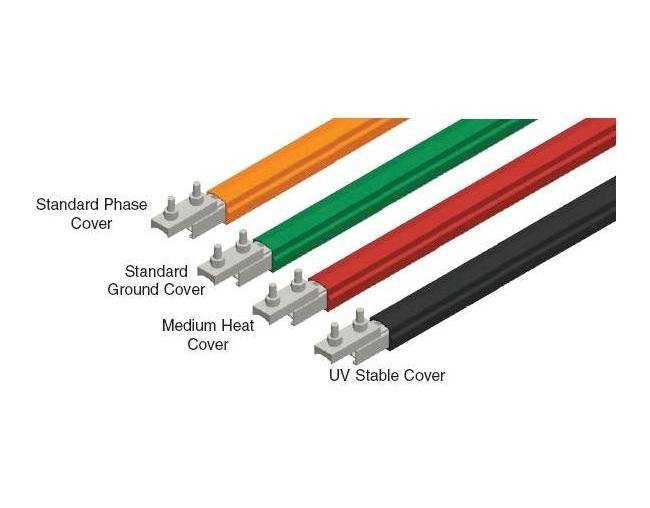

Specifications Cover Type

UV Stable (Black)

Specifications Cross Sectional Area

156 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000234 Î©/m

Specifications Material

Aluminum / Stainless Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

400 A

Specifications Resistance R For Dc At 20 C

0.000199 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

5.8 lb | 2.6 kg
