Safelec 2 Conductor Bars with Splice, 400A, Aluminum/Stainless Steel
Safelec 2 Conductor Bars with Splice, 400A, Aluminum/Stainless Steel
SKU:CRA-89bf1e
Safelec 2 Conductor Bars with Splice for efficient and safe power distribution in crane systems.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Safelec 2 Conductor Bars with Splice, 400A, Aluminum/Stainless Steel
$399.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Conductor Bars with Splice, 400A, Aluminum/Stainless Steel
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Safelec 2 Conductor Bars with Splice Installed are designed to deliver reliable power distribution in crane control and electrification systems. With an amperage rating of 400A and a cross-sectional area of 156 mm², these conductor bars ensure efficient current transmission. The aluminum/stainless steel construction offers durability and the standard phase cover in orange provides visibility and safety. Meeting UL listing standards with a maximum system voltage of 600V AC/DC, these bars are ideal for industrial applications requiring high performance and safety.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
400 A
Specifications Bar Length
4.5 m
Specifications Cover Type

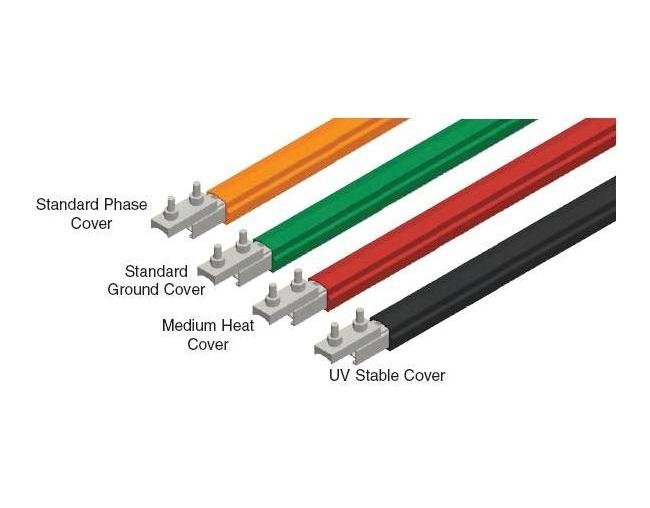

Standard Phase Cover (Orange)
Specifications Cross Sectional Area
156 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000234 Ω/m
Specifications Material
Aluminum / Stainless Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
400 A
Specifications Resistance R For Dc At 20 C
0.000199 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.8 lb | 2.6 kg
