SAFELEC 2 Conductor Bars with Splice Installed

Name: SAFELEC 2 Conductor Bars with Splice Installed
Brand: Clutch Engineering
SKU: CRA-f31ede
Price: 249.99 USD
Availability: OutOfStock

SKU:CRA-f31ede

Enhance power transmission with SAFELEC 2 Conductor Bars. Durable aluminum/stainless steel construction for safety & efficiency.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SAFELEC 2 Conductor Bars with Splice Installed are engineered for reliable power transmission in crane control systems. With an amperage rating of 315 A and a cross-sectional area of 120 mm², these conductor bars ensure efficient electrical conductivity. The aluminum and stainless steel construction, along with a medium heat red cover, provides durability and safety in challenging industrial environments. Meeting UL-listed maximum system voltage requirements of 600V, these bars are designed for optimal performance and longevity.

Product Specifications

Cover Specifications Cover Material

Polycarbonate

Cover Specifications Dielectric Strength

240 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

24%

Cover Specifications Specific Density

1.15 g/cmÂ³

Cover Specifications Surface Resistivity

>1014 Î©

Cover Specifications Vicat Softening Temperature

250 ÂºF | 121.1 ÂºC

Cover Specifications Volume Resistivity

>1016 Î©/cm

Specifications Amperage Rating

315 A

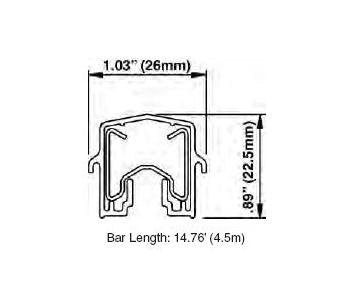

Specifications Bar Length

4.5 m

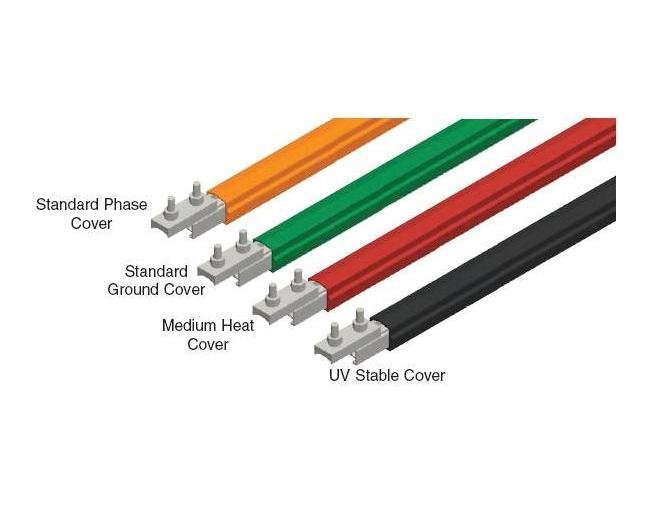

Specifications Cover Type

Medium Heat Cover (Red)

Specifications Cross Sectional Area

120 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000288 Î©/m

Specifications Material

Aluminum / Stainless Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

315 A

Specifications Resistance R For Dc At 20 C

0.000261 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

5.1 lb | 2.3 kg
