Safelec 2 Copper Conductor Bars with Splice

Name: Safelec 2 Copper Conductor Bars with Splice
Brand: Clutch Engineering
SKU: CRA-6d68d2
Price: 399.99 USD
Availability: OutOfStock

SKU:CRA-6d68d2

Enhance your crane control with Safelec 2 Copper Conductor Bars. High amperage, heat-resistant cover, and durable copper construction ensure reliable power transmission.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your crane control system with our Safelec 2 Copper Conductor Bars with Splice Installed. These bars are designed to handle a high amperage rating of 160A, with a cross-sectional area of 50 mm² for efficient power transmission. The medium heat cover ensures safety, while the copper material and polycarbonate cover meet stringent industry standards. With a maximum system voltage of 600V, impedance control, and flame-retardant properties, these bars are ideal for industrial applications requiring reliability and durability.

Product Specifications

Cover Specifications Cover Material

Polycarbonate

Cover Specifications Dielectric Strength

240 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

24%

Cover Specifications Specific Density

1.15 g/cmÂ³

Cover Specifications Surface Resistivity

>1014 Î©

Cover Specifications Vicat Softening Temperature

250 ÂºF | 121.1 ÂºC

Cover Specifications Volume Resistivity

>1016 Î©/cm

Specifications Amperage Rating

160 A

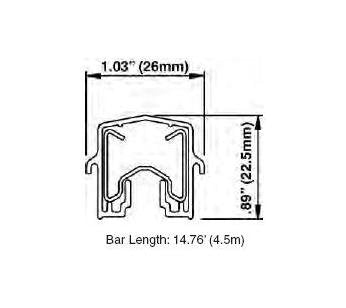

Specifications Bar Length

4.5 m

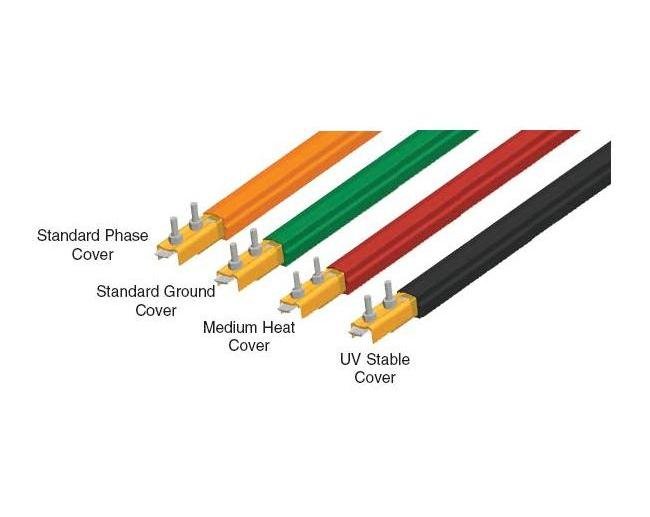

Specifications Cover Type

Medium Heat Cover (Red)

Specifications Cross Sectional Area

50 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000364 Î©/m

Specifications Material

Copper

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

160 A

Specifications Resistance R For Dc At 20 C

0.000342 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

6.2 lb | 2.8 kg

Safelec 2 Copper Conductor Bars with Splice
