Safelec 2 Copper Conductor Bars with Splice, 400A, 600V
Safelec 2 Copper Conductor Bars with Splice, 400A, 600V
SKU:CRA-71b508
Reliable Safelec 2 Copper Conductor Bars with 400A rating, PVC cover, and NIST compliant for efficient electrification.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Safelec 2 Copper Conductor Bars with Splice, 400A, 600V
$399.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Copper Conductor Bars with Splice, 400A, 600V
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance crane control systems with our Safelec 2 Copper Conductor Bars with Splice Installed. Built for reliability, these bars feature a 400A rating, high copper cross-sectional area, PVC cover for safety, and meet NIST standards. With self-extinguishing properties and compliance with FAR requirements, they ensure efficient electrification. Suitable for government and institutional buyers seeking top-quality conductor bars.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
400 A

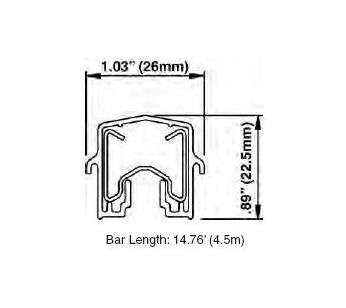

Specifications Bar Length
4.5 m

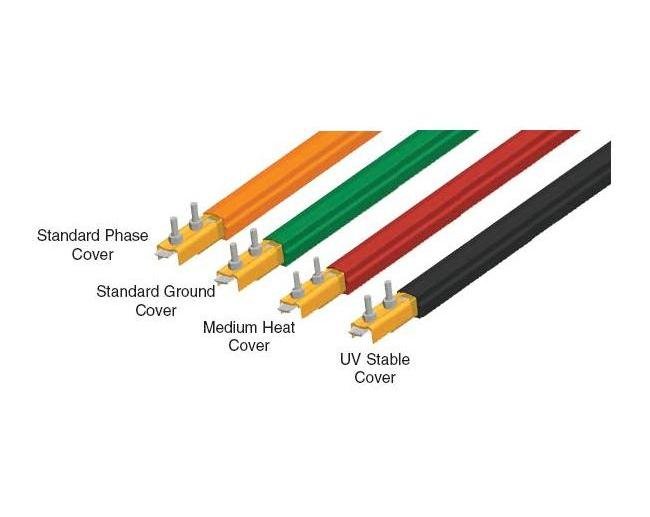

Specifications Cover Type
Standard Ground Cover (Green)
Specifications Cross Sectional Area
93 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000221 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
400 A
Specifications Resistance R For Dc At 20 C
0.000184 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
10 lb | 4.5 kg
