Safelec 2 Copper Conductor Bars with Splice Installed
Safelec 2 Copper Conductor Bars with Splice Installed
SKU:CRA-eff6db
Efficient power transmission with Safelec 2 Copper Conductor Bars. High amperage rating, durable design, and safety ensured. UL compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Safelec 2 Copper Conductor Bars with Splice Installed
$499.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Copper Conductor Bars with Splice Installed
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Safelec 2 Copper Conductor Bars with Splice Installed are designed for reliable power transmission in crane control and electrification systems. With a high amperage rating of 400 A, these conductor bars ensure efficient power distribution. The copper material offers low resistance, enhancing conductivity. Featuring a standard phase cover in orange color, PVC cover material, and flame-retardant properties, these bars guarantee safety and durability. Meeting UL standards, these bars are suitable for both AC and DC systems, with a maximum voltage of 600 V. Designed for ease of installation, these conductor bars come in a length of 4.5 m and comply with industry-specific certifications.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
400 A

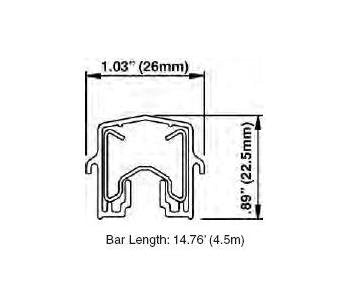

Specifications Bar Length
4.5 m

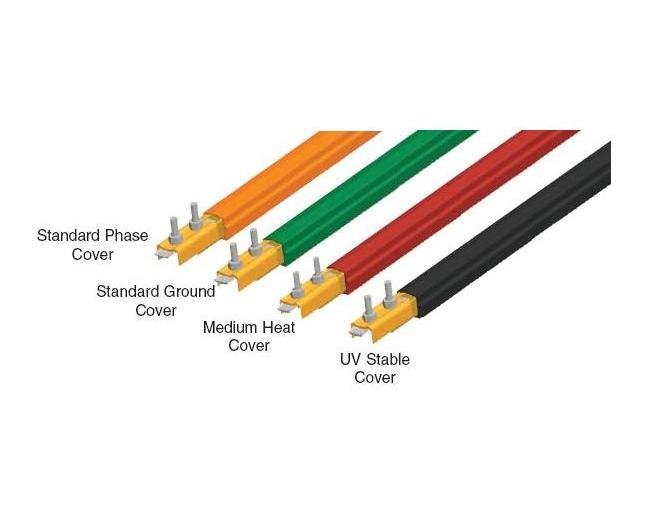

Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Cross Sectional Area
93 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000221 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
400 A
Specifications Resistance R For Dc At 20 C
0.000184 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
10 lb | 4.5 kg
