Safelec 2 Copper Conductor Bars with Splice Installed
Safelec 2 Copper Conductor Bars with Splice Installed
SKU:CRA-909840
Enhance crane control with Safelec 2 Copper Conductor Bars for efficient power distribution and safety compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Safelec 2 Copper Conductor Bars with Splice Installed
$129.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Copper Conductor Bars with Splice Installed
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to our Safelec 2 Copper Conductor Bars with Splice Installed for reliable crane control solutions. With an amperage rating of 250A, this product offers optimal performance and durability. The PVC cover ensures safety with its self-extinguishing properties, meeting industry standards for electrical equipment. Ideal for institutional and government procurement, these conductor bars provide efficient power distribution with a high dielectric strength of 180 kv/cm.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
250 A

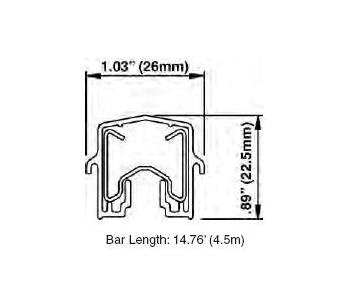

Specifications Bar Length
4.5 m
Specifications Cover Type

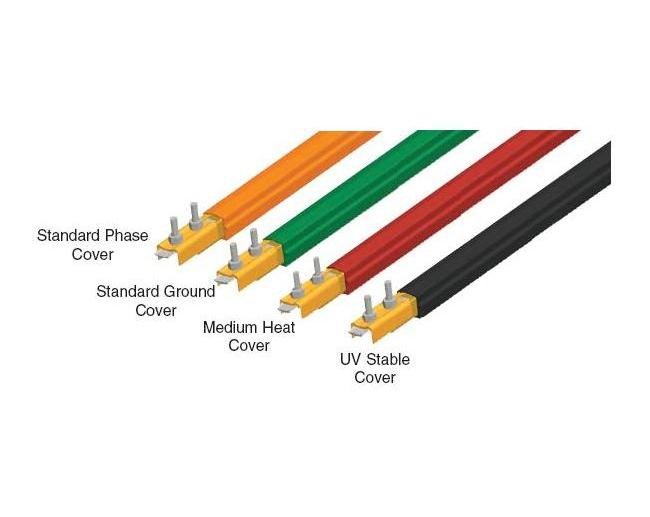

Standard Ground Cover (Green)
Specifications Cross Sectional Area
63 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000300 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
250 A
Specifications Resistance R For Dc At 20 C
0.000274 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
6.8 lb | 3.1 kg
