SAFELEC 2 Copper Conductor Bars with Splice Installed
SAFELEC 2 Copper Conductor Bars with Splice Installed
SKU:CRA-71c153
Reliable SAFELEC 2 Copper Conductor Bars for efficient crane control, with PVC cover for safety. Ideal for institutional use.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SAFELEC 2 Copper Conductor Bars with Splice Installed
$149.99
Quantity: 1
Claim Your Seller Account
SAFELEC 2 Copper Conductor Bars with Splice Installed
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAFELEC 2 Copper Conductor Bars with Splice Installed are designed for efficient crane control and electrification. With an amperage rating of 160 A, 50 mm² cross-sectional area, and a maximum system voltage of 600 V, these bars ensure reliable power distribution. The PVC cover with a dielectric strength of 180 kv/cm provides safety and protection. Meeting industry standards for resistance, impedance, and temperature tolerance, these bars offer exceptional performance and durability. Ideal for institutional settings requiring quality, safety, and efficiency.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
160 A

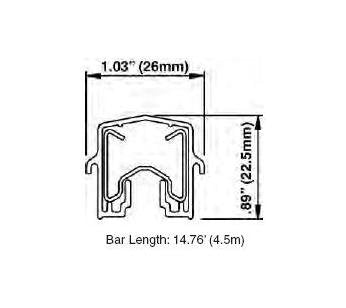

Specifications Bar Length
4.5 m

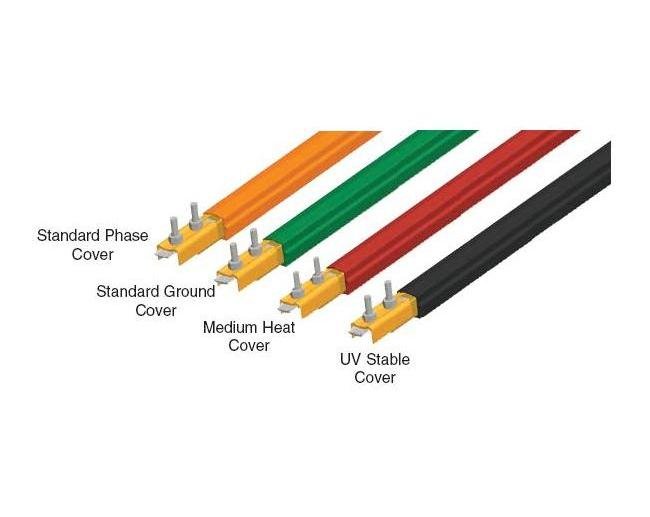

Specifications Cover Type
Standard Ground Cover (Green)
Specifications Cross Sectional Area
50 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000364 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
160 A
Specifications Resistance R For Dc At 20 C
0.000342 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
6.2 lb | 2.8 kg
