Safelec 2 Copper Conductor Bars with Splice Installed
Safelec 2 Copper Conductor Bars with Splice Installed
SKU:CRA-bd83ae
Enhance crane control with Safelec 2 Copper Conductor Bars. 250A, 63mm², 600V. PVC cover, flame-resistant, high dielectric strength.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Safelec 2 Copper Conductor Bars with Splice Installed
$249.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Copper Conductor Bars with Splice Installed
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your crane control system with the Safelec 2 Copper Conductor Bars with Splice Installed. These bars feature a robust copper construction with an amperage rating of 250 A, designed for efficient power distribution. With a cross-sectional area of 63 mm² and a maximum system voltage of 600 V, these bars ensure reliable and safe operation in industrial settings. The PVC cover material provides excellent insulation and flame resistance, meeting stringent safety standards. Additionally, the self-extinguishing properties and high dielectric strength make these conductor bars ideal for demanding applications.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
250 A

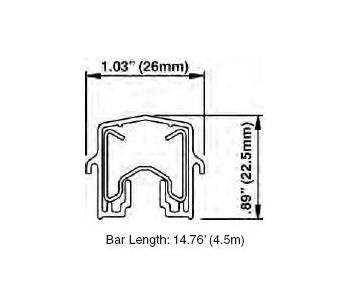

Specifications Bar Length
4.5 m

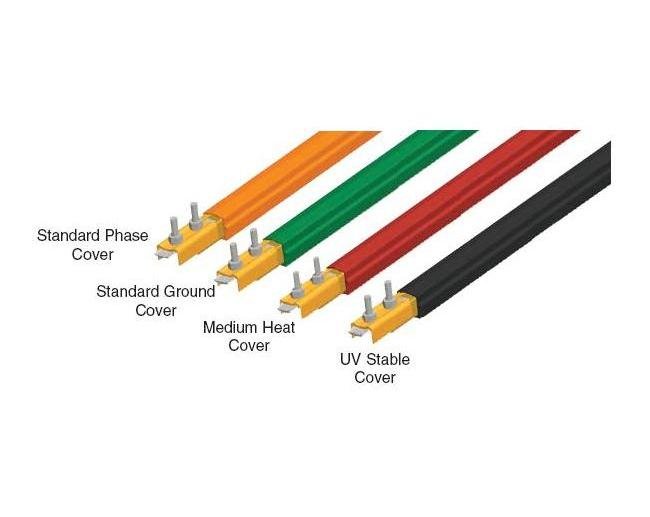

Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Cross Sectional Area
63 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000300 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
250 A
Specifications Resistance R For Dc At 20 C
0.000274 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
6.8 lb | 3.1 kg
