Safelec 2 Galvanized Steel Conductor Bar with Splice
Safelec 2 Galvanized Steel Conductor Bar with Splice
SKU:CRA-831130
Reliable Safelec 2 conductor bar with 60A rating & PVC cover for safe power transmission.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Safelec 2 Galvanized Steel Conductor Bar with Splice
$249.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Galvanized Steel Conductor Bar with Splice
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Safelec 2 Galvanized Steel Conductor Bar with Splice Installed is a high-quality solution for crane control and electrification systems. With an amperage rating of 60A and a maximum system voltage of 600V, this conductor bar ensures reliable power transmission. The galvanized steel construction provides durability, while the PVC cover with self-extinguishing properties offers safety. Meeting industry standards for resistance, impedance, and support pitch, this conductor bar guarantees optimal performance in various installations.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
60 A

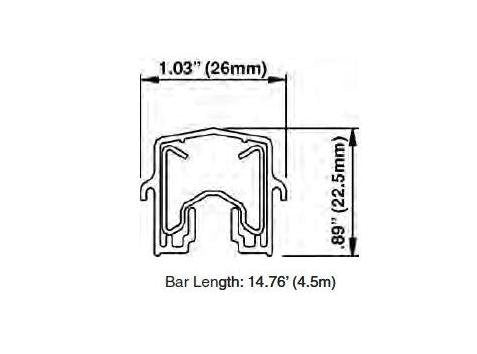

Specifications Bar Length
4.5 m

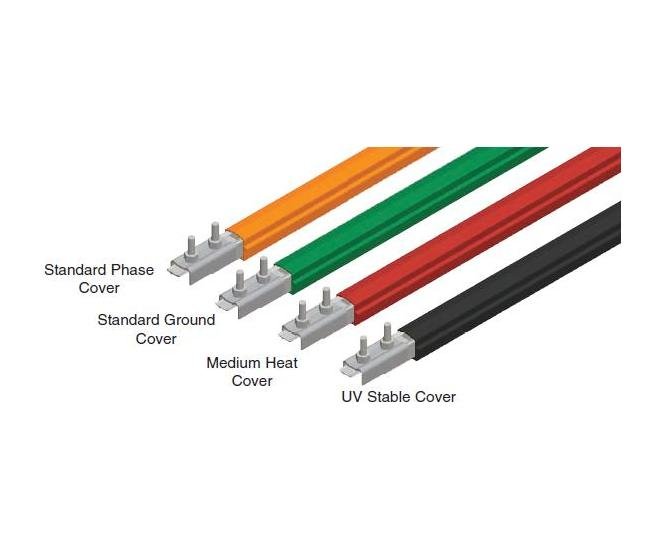

Specifications Cover Type
Standard Ground Cover (Green)
Specifications Cross Sectional Area
50 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.003604 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
60 A
Specifications Resistance R For Dc At 20 C
0.003584 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
