Safelec 2 Galvanized Steel Conductor Bars with Splice
Safelec 2 Galvanized Steel Conductor Bars with Splice
SKU:CRA-53e02b
Safelec 2 Galvanized Steel Conductor Bars: Reliable power supply solution for crane control systems. Durable, efficient, and compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Safelec 2 Galvanized Steel Conductor Bars with Splice
$399.99
Quantity: 1
Claim Your Seller Account
Safelec 2 Galvanized Steel Conductor Bars with Splice
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Safelec 2 Galvanized Steel Conductor Bars with Splice Installed are designed to provide a reliable and efficient power supply solution for crane control systems. With an amperage rating of 100 A, a cross-sectional area of 63 mm², and a maximum system voltage of 600 V, these conductor bars ensure optimal electrical conductivity. The galvanized steel material offers durability and resistance to environmental factors. Featuring a standard ground cover in green PVC with flame-retardant properties, these bars comply with safety regulations. The installation of the splice enhances ease of use and maintenance.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
100 A
Specifications Bar Length

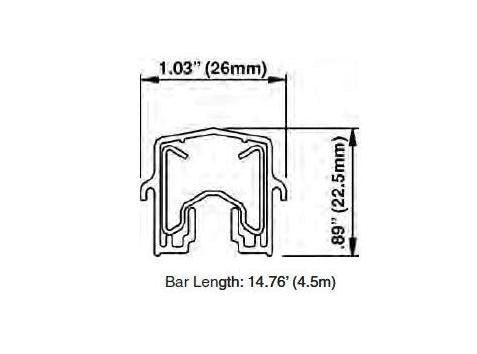

4.5 m
Specifications Cover Type

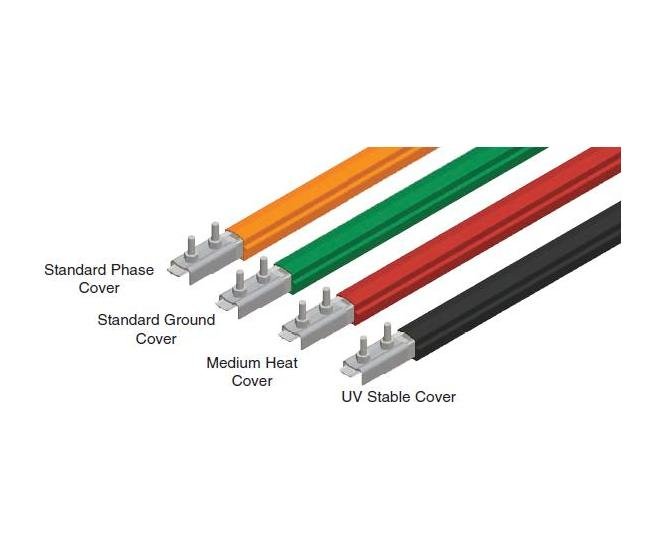

Standard Ground Cover (Green)
Specifications Cross Sectional Area
63 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.002891 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
100 A
Specifications Resistance R For Dc At 20 C
0.002867 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
