Safety-Class-2 Power Control Transformers
Safety-Class-2 Power Control Transformers
SKU:POW-24354d
Reliable Safety-Class-2 Power Control Transformers with tamper-resistant shrouds and easy mounting for secure power control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Safety-Class-2 Power Control Transformers
$29.99
Quantity: 1
Claim Your Seller Account
Safety-Class-2 Power Control Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

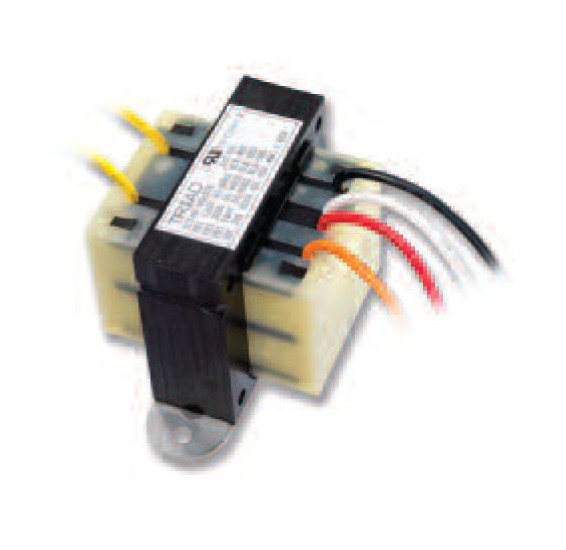

The Safety-Class-2 Power Control Transformers provide reliable power control solutions for a range of applications. Featuring tamper-resistant shrouds for enhanced safety and a welded steel bracket for easy mounting, these transformers ensure both functionality and convenience. With primary input voltage options of 120 V, 208 V, and 240 V, secondary output voltage of 24 V, and a maximum power of 40 VA, they offer optimal performance. The compact design, measuring 56.5mm (H) x 92.5mm (W) x 61mm (D), with mounting dimensions of 79.38mm, ensures versatile installation. Suitable for 50 Hz and 60 Hz input frequencies, these transformers are lightweight at 1.50 lb, making them ideal for various industrial and institutional applications.
Product Specifications
Specifications Connections
Leads

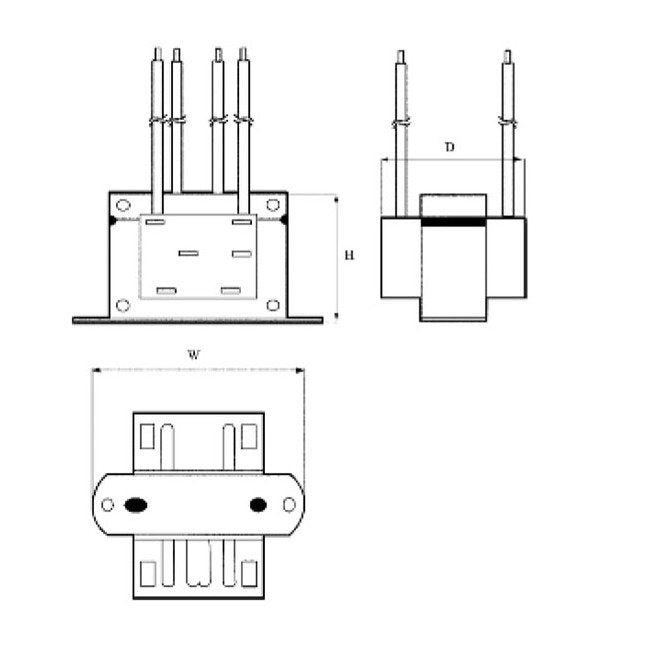

Specifications Depth D
61 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
40 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 208 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
1.50 lb
Specifications Width W
92.5 mm
