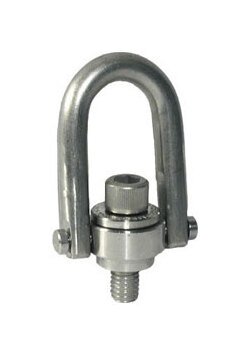

Safety Engineered Hoist Rings - Inch, Stainless Steel
Safety Engineered Hoist Rings - Inch, Stainless Steel
SKU:HOI-fe02ca
Rugged Stainless Steel Hoist Rings for high-load capacity & versatile movement. 5:1 safety factor, 360° swivel, 180° pivot. Ideal for corrosive environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Safety Engineered Hoist Rings - Inch, Stainless Steel
$89.99
Quantity: 1
Claim Your Seller Account
Safety Engineered Hoist Rings - Inch, Stainless Steel
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Stainless Steel Safety Engineered Hoist Rings are meticulously engineered to meet stringent quality standards, offering unmatched reliability and safety. With a 5:1 safety factor and 360° swivel, 180° pivot capabilities, these hoist rings provide exceptional load-bearing capacity and versatile movement. Made from 300 Series Stainless Steel, they are ideal for corrosive or elevated temperature environments. Each unit undergoes 100% Liquid Penetrate Testing per ASTM-E 1417 and is purified per MIL-S-5002 standards. With a load rating of 3500 pounds, these hoist rings are perfect for various industrial applications.
Product Specifications
Specifications A Radius
1.40 in
Specifications B Base Height
1.71 in
Specifications Country Of Origin
US
Specifications C Ring Width
4.80 in
Specifications D Diameter
1.00 in
Specifications E Thread Length
1.04 in
Specifications Finish
Stainless Steel
Specifications F Height
6.52 in
Specifications G Thread Size
3/4-10
Specifications Height Tolerance
± 0.060 in
Specifications H Inside Clearance
3.06 in
Specifications I Overall Width
5.14 in
Specifications J
2.37 in
Specifications Material
300 Stainless Steel
Specifications Overall Width Tolerance
± 0.060 in
Specifications Pivot
180 º
Specifications Ps Load Rated
3500 Pounds (1588 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Thread Length Tolerance
± 0.060 in
Specifications Torque
50.00 lb·ft
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
6 lb. 10 oz
