Safety-Shielded Class-2 Power Control Transformers
Safety-Shielded Class-2 Power Control Transformers
SKU:POW-f13ec5
Enhanced safety and easy mounting with tamper-resistant shrouds and steel bracket welding. Supports primary inputs of 120V, 208V, and 240V, secondary output of 12V.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Safety-Shielded Class-2 Power Control Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Safety-Shielded Class-2 Power Control Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

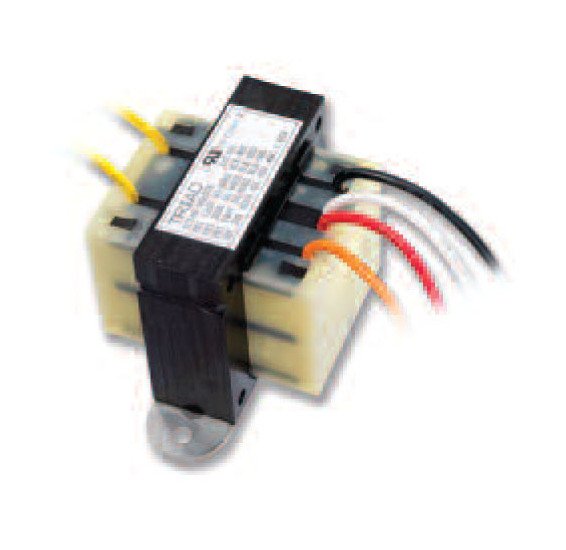

The Safety-Shielded Class-2 Power Control Transformers from Triad are designed with tamper-resistant shrouds ensuring safety in all installations. The steel bracket welded to the bottom allows for easy and secure mounting. With primary input voltage options of 120 V, 208 V, and 240 V, and a secondary output voltage of 12 V, these transformers deliver a maximum power of 40 VA. Featuring leads for connections, a compact design with dimensions of 56.5 mm (H) x 92.5 mm (W) x 61 mm (D), and weighing 1.50 lb, they offer reliable performance for various applications. Ideal for meeting institutional procurement standards and ensuring efficiency.
Product Specifications
Specifications Connections
Leads

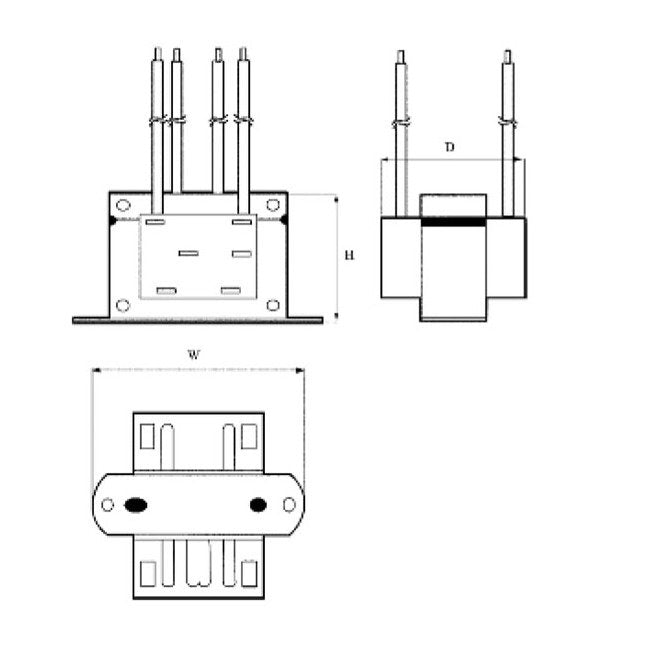

Specifications Depth D
61 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
40 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 208 V | 240 V
Specifications Secondary Output Voltage
12 V
Specifications Weight
1.50 lb
Specifications Width W
92.5 mm
