The SAMOA DC20 Plastic Air Operated Double Diaphragm (AODD) Pump revolutionizes pumping technology with its DirectFlo® Inside-out design. Featuring Overmolded diaphragms and a patented Frictionless Pivot Valve, this pump offers exceptional efficiency, longevity, and ease of maintenance. With the ability to replace key components without complete disassembly, SAMOA DC20 sets a new standard in AODD pumps. Delivering up to 5 gpm flow at 100 psi, it surpasses industry expectations. Explore the future of fluid handling with SAMOA DC20.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Inlet Connection
3/8 in. NPSM Female
Specifications Air Motor Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
PTFE
Specifications Check Valve Seat Material
Acetal | Polypropylene® | PVDF
Specifications Delivery Per Cycle 2 X Strokes
0.016 gal | 0.06 L
Specifications Delivery Per Stroke
0.008 gal | 0.03 L
Specifications Diaphragm Material
Overmolded | PTFE | Santoprene® | TPE (Hytrel®)

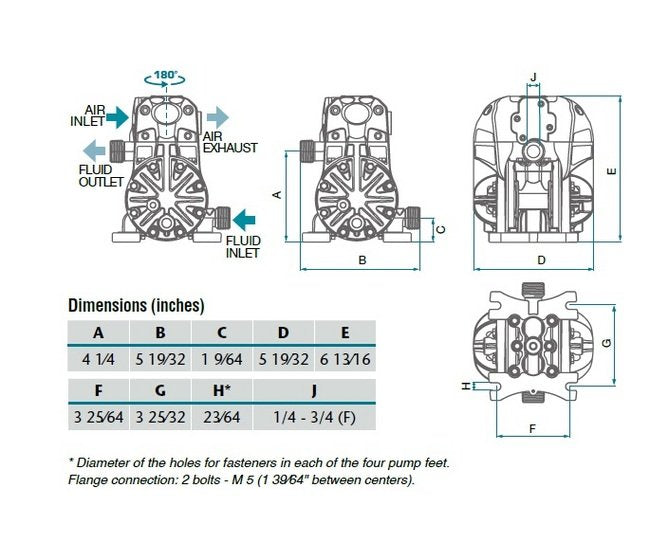

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Revolutionary DirectFlo® Inside-out Technology-Fluid flows thru centerExtremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced Stroke Patented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously (No Spools / No O-Rings / No Drag)Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Smooth Running-Reduced Pulsation and Vibration Replace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Rebuilds in 1/3 or Less the Time as any other AODD Pump.
Specifications Fluid Connection
1/4" NPT Female
Specifications Maximum Dry Suction Lift
6-1/2 ft | 2 m

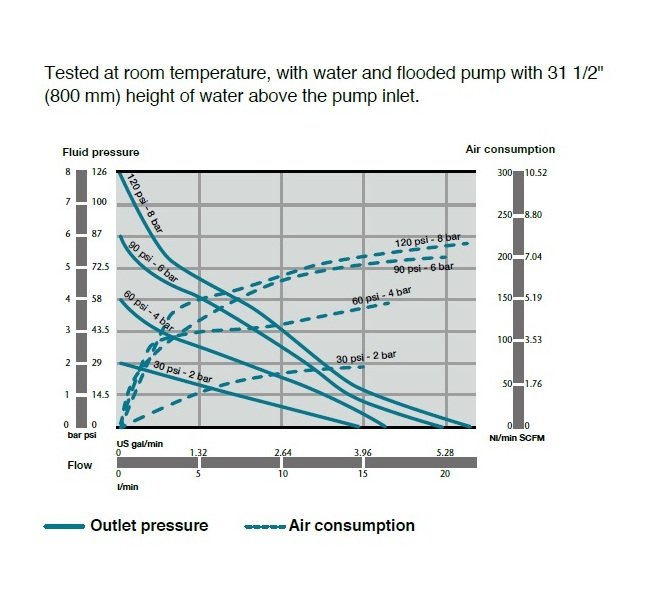

Specifications Maximum Flow
5 gpm | 20 L/min
Specifications Maximum Solids
3/32 in | 2 mm
Specifications Maximum Wet Suction Lift
23 ft | 7 m
Specifications Model Number
DC20
Specifications Pressure Range
22 to 100 psi | 1.5 to 7 bar
Specifications Pump Body Materials
Conductive Acetal (ATEX Pump) | Conductive Polypropylene (ATEX Pump) | Conductive PVDF (ATEX Pump) | Polypropylene | PVDF
Specifications Replacement For
All-Flo A025/D025 | ARO Compact PD01/PE01 | Dayton 6PY37/6PY38/3HJV7 | Wilden Proflo (Shift) P25 /P.025 | GRACO Husky 205 | Versamatic E6 | Warren Rupp-Sandpiper PB-1/4 | Yamada NDP-5
Specifications Weight
2.65 lb | 1.2 kg
