SAMOA DirectFlo Metal AODD Pump DF50-A

Name: SAMOA DirectFlo Metal AODD Pump DF50-A
Brand: AB Industrial
SKU: POS-e3a303
Price: 1199.99 USD
Availability: OutOfStock

SKU:POS-e3a303

Revolutionize pumping efficiency with the SAMOA DirectFlo Metal AODD Pump DF50-A. Ideal for corrosive fluids, it offers reliability, easy repair, and low air consumption.

$1,199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience revolutionary pumping efficiency with the SAMOA DirectFlo Metal Air Operated Double Diaphragm (AODD) Pump DF50-A. Designed with patented DirectFlo Inside-out Technology, this pump offers exceptional reliability and ease of repair. Perfect for corrosive, shear-sensitive, and viscous fluids, it features long diaphragm life, adjustable port configurations, and low air consumption. With leak-free bolted diaphragms and smooth operation, the SAMOA DirectFlo pump ensures minimal pulsation and vibration, suitable for various industries like pharmaceutical, food & beverage, construction, and more.

Product Specifications

Specifications Air Inlet Connection

3/8 in. NPSM Female

Specifications Air Motor Material

Conductive PolypropyleneÂ®

Specifications Check Valve Balls Material

Acetal | AISI 316 Stainless steel | Buna-N | PTFE

Specifications Check Valve Seat Material

AISI 316 Stainless Steel

Specifications Delivery Per Cycle 2 X Strokes

0.05 gal | 0.2 L

Specifications Delivery Per Stroke

0.026 gal | 0.1 L

Specifications Diaphragm Material

Overmolded Buna-N | Overmolded PTFE | Overmolded SantopreneÂ® | Overmolded TPE (HytrelÂ®)

Specifications Dimensions

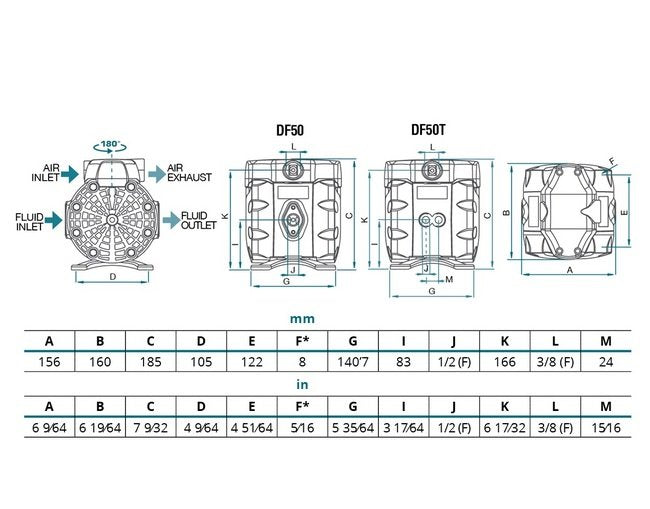

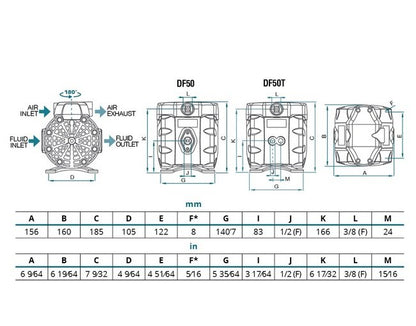

See photo and brochure for dimensions.

Specifications Features

Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock

Specifications Fluid Connection

1/2" NPT Female

Specifications Maximum Dry Suction Lift

20 ft | 6 m

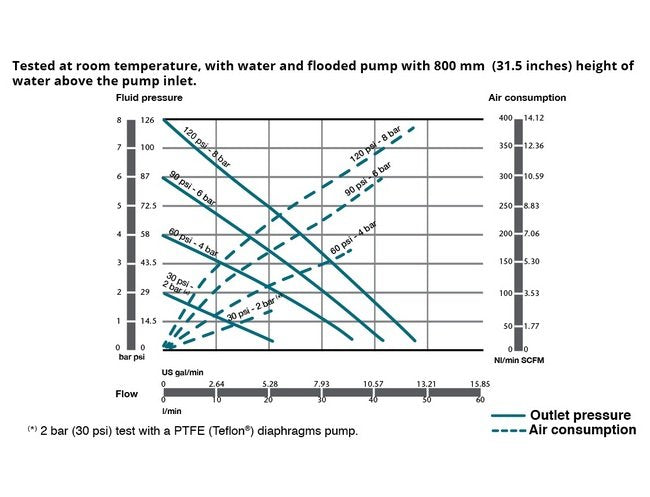

Specifications Maximum Flow

14 gpm | 50 L/min

Specifications Maximum Solids

1/8 in | 3 mm

Specifications Maximum Wet Suction Lift

26 ft | 8 m

Specifications Model Number

DF50-A

Specifications Pressure Range

22 to 115 psi | 1.5 to 8 bar

Specifications Pump Body Materials

AISI 316 Stainless Steel | Aluminum

Specifications Replacement For

Specifications Weight

7.72 lb | 3.5 kg

SAMOA DirectFlo Metal AODD Pump DF50-A
