SAMOA DirectFlo Plastic Air Operated Double Diaphragm (AODD) Pump DF30
SAMOA DirectFlo Plastic Air Operated Double Diaphragm (AODD) Pump DF30
SKU:POS-603aa0
Revolutionize your pumping with SAMOA DF30 AODD Pump - Efficient, Reliable, and Easy to Maintain.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SAMOA DirectFlo Plastic Air Operated Double Diaphragm (AODD) Pump DF30
$399.99
Quantity: 1
Claim Your Seller Account
SAMOA DirectFlo Plastic Air Operated Double Diaphragm (AODD) Pump DF30
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled efficiency with the SAMOA DirectFlo Plastic AODD Pump DF30. Featuring revolutionary DirectFlo Inside-out Technology, this pump offers exceptional reliability and ease of repair. With overmolded diaphragms and patented frictionless air valve, the SAMOA DF30 ensures smooth operation, minimal maintenance, and high performance. Ideal for corrosive, shear-sensitive, and viscous fluids, this pump is a versatile solution for various industries including chemical, pharmaceutical, and food & beverage. Invest in the SAMOA DF30 for unmatched productivity and longevity in your pumping applications.
Product Specifications
Specifications Air Inlet Connection
3/8 in. NPSM Female
Specifications Air Motor Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
Acetal | AISI 316 Stainless steel | Buna-N | PTFE
Specifications Check Valve Seat Material
AISI 316 Stainless Steel | PVDF
Specifications Delivery Per Cycle 2 X Strokes
0.04 gal | 0.14 L
Specifications Delivery Per Stroke
0.02 gal | 0.07 L
Specifications Diaphragm Material
Overmolded PTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®)

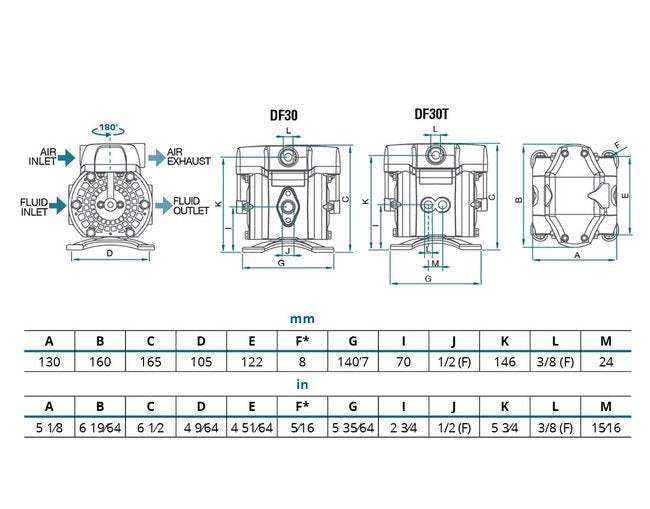

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
3/8-1/2" NPT Female
Specifications Maximum Dry Suction Lift
13 ft | 4 m
Specifications Maximum Flow
10 gpm | 38 L/min
Specifications Maximum Solids
1/8 in | 3 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
DF30
Specifications Pressure Range
22 to 115 psi | 1.5 to 8 bar
Specifications Pump Body Materials
Conductive Acetal (ATEX Pump) | Conductive Polypropylene (ATEX Pump) | Conductive PVDF (ATEX Pump) | Polypropylene | PVDF
Specifications Replacement For
All-Flo C038/D038 | ARO Compact PD03/PE03 | Dayton 3HJV7 | GRACO Husky 307 | Versamatic E8 | Warren Rupp-Sandpiper WR10 | Yamada DP-10
Specifications Weight
4.19 lb | 1.9 kg
